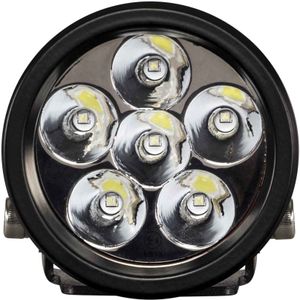

Heise® 3.5" Black 6 LED Round Driving Light-HE-DL2

Model #: HE-DL2
840658
Heise
At a Glance

Heise LED Lighting, by Metra Electronics, are exclusively developed and manufactured to meet all international standards. Our range of lighting integrates advanced thermal management, short circuit and open circuit protection and many other innovative features.

Request a Quote
$99,999.00Save $NaN

Get to know this product.

Specifications

  • Input Voltage: 10-30V DC
  • Wattage: 18W (6-3W OSRAM LEDs)
  • Raw Lumens: 1440
  • Color Temperature: 6000K
  • Beam Pattern: 8deg Spot

Construction

  • Housing Material: die-cast aluminum housing
  • Housing Color: black
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Black Powder Coated Steel
  • Hole Dimensions: Mounting Bolt Drill – .25"
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

Operation

  • Operating Temperature: -40degC to +60degC
  • Current Consumption: .9 amps at 13.8 volts
  • IP Rating: IP67
  • Protections: reverse polarity
Specifications

Misc. Specs

Color Finish NameBlack
Bulb TypeLED
Color Temperature Range6000K
Number Of Bulbs6
WarningProposition 65 Warning for California Residents
