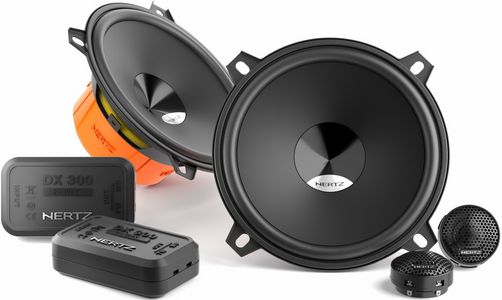

The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.
The exponential profile gets very close to the perfect one, providing exceptional dispersion.
Power Handling - Peak W | 120 |
Power Handling - Continuous W | 60 |
Impedance Ω | 4 |
Frequency Response Hz | 60 ÷ 23k |
Sensitivity dB SPL | 93 |
Voice coil Ø mm (in.) | 25 (1.0) |
Woofer size mm (in.) | 130 (5.0) |
Tweeter size mm (in.) | 24 (0.9) |
Woofer magnet | High density flux ferrite |
Tweeter magnet | Neodymium |
Woofer cone | Water-repellent pressed paper |
Tweeter dome | PEI |
Crossover type | Hi Pass |
Crossover cut off | 3.5 kHz @ 12 dB Oct. |
Impedance | 4 Ohms |
Woofer Size | 5 |
Color Finish Name | Black |
Car Speaker Size | 5.25 |
RMS Power Handling (Watts) | 60 |
Peak Power Rating (Watts) | 120 |
