Product Dimensions 6.4"h x 9.3"w x 3.9"d

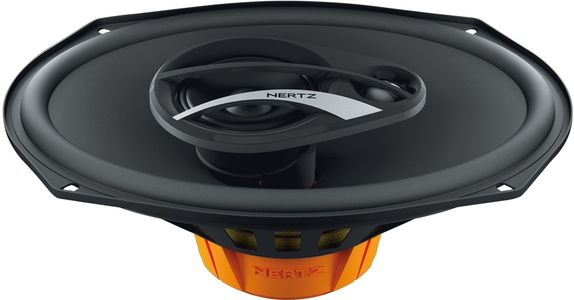

An authentic 3-way coax capable of reproducing a wide frequency spectrum. The DCX 690.3 car audio coaxial uses an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components.Read More
Pure copper voice coil, wound on conex former, for maximum lightness.
Large motor assembly for mobile voice coil control.
Water-repellent treated paper cone.
TPU surround, for wide excursion and resonance damping.
60 mm paper tweeter with ferrite magnet.
Super tweeter with PEI dome, for compactness and energy at high frequencies.
DIN size basket protected by abrasion-proof dust paint.
Tin-plated, high current terminals.
Silver-plated lead wires for maximum reliability and conductivity.
Butyl rubber protective cover, against crashes and abrasions.
Epoxy glue for basket and motor system provides perfect coupling.
Low carbon content plates for maximum magnetic permeability and high heat dissipation.
General Specs | |
Impedance | 4 |
Frequency | 45 ÷ 21k |
Color | Black |
Width (in.) | 9.3 |
Depth (in.) | 3.9 |
Height (in.) | 6.4 |
Product Weight (lbs.) | 2.09 |
Color Finish Name | Black |
Collection | Dieci |
Car Speaker Size | 6 x 9 |
RMS Power Handling (Watts) | 90 |
Material | Metal |
Peak Power Rating (Watts) | 180 |
