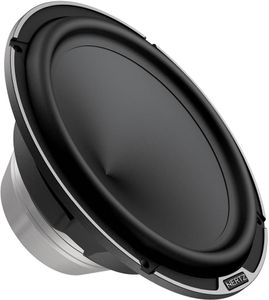

Hertz Mille Legend Black 7" Car Subwoofer

• Neodymium magnet optimized with FEA simulations for real dynamics and utmost control.
• Very low carbon content CNC machined plates, for maximum magnetic permeability and low distortion at high power levels.
• Aluminum covered pole for a linear impedance modulation and low distortion.
• 50 mm CCAW double layer voice coil wound on a Polyamide former for exceptional power handling and compression-free re production even in the most demanding musical passages.
• Exponential V-cone® with optimized geometry for utmost linearity and dispersion.
• “Boundary Free” IIR rubber surround, for better efficiency and wider mid-bass frequency.
• Pressed-pulp cone with cotton fibers, combining stiffness and lightweight, to achieve wide frequency response and limited break-ups at high frequency.
• Three-spoke, very acoustically transparent anti-resonant aluminum alloy basket featuring built-in venting holes.
• CNC machined elegant diamond-cut basket edge featuring the Hertz logo.
• Die-cast aluminum factory provided grille featuring diamond-cut aluminum Hertz logo.

To get to these results, the R&D staff performed extensive in-car voicing sessions, after building several prototypes with the FEA simulation method and testing them with a wide array of measurements carried out with the Klippel® suite. Like in the suspensions of competition cars, the surround must stand the most extreme working conditions to ensure maximum stability and symmetry at high excursions, and so to achieve impact and extension to the low frequency range.

For this reason, the electro-acoustic designers developed a new surround-basket gluing system called “Boundary Free Surround”. This technology, provides the ability to achieve wider emission surface of the cone compared to speakers with same diameter; that way, the cone manages to move a bigger mass of air, so it produces more acoustic pressure.

V-CONE®

The exponential profile gets very close to the perfect one, providing exceptional dispersion.

Boundary Free Surround

This technology provides the ability to achieve wider emission surface of the cone compared to speakers with same diameter; that way, the cone manages to move a bigger mass of air, so it produces more acoustic pressure. This special surround is built from highly pure IIR butyl rubber, ensuring extraordinary thermal and mechanical linearity.
