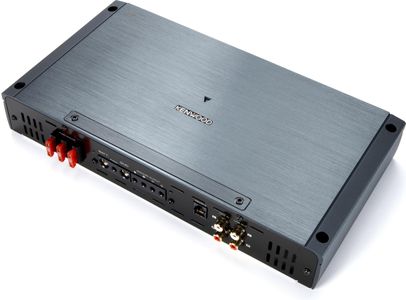

Kenwood Class D Mono Power Amplifier
At a Glance
Kenwood's Excelon Reference Series XR1001-1 mono amplifier can power your subwoofer with up to 1,000 watts RMS.
Proposition 65 Warning for California Residents
Misc. Specs
| Color | Black |
|---|---|
| Depth (in.) | 6.63 |
| Width (in.) | 10.25 |
| Height (in.) | 2 |
| Amplifier Class | Class D |
| Amplifier Output (Watts) | 2000 |
| Bluetooth Capable | No |
| Amplifier Channels | Mono Block |
| Impedance | 2 - 4 Ohms |
| Manufacturer Warranty | 2 Year |
| RMS Power Handling (Watts) | 1000 |
| Water Resistant | No |
| Peak Power Rating (Watts) | 2000 |
| Digital Input | No |
| Shallow Mount | No |
| Speaker Level Input | Yes |
| Number Of Outputs | 2 |
| Minimum Impedance Unbridged | 2 Ohm |
| Number Of Inputs | 2 |
| Product Weight (lbs.) | 5.2 |
General
| Title | Class D Mono Power Amplifier |
|---|---|
| Amplifier Type | Class D |
| Series | eXcelon |
| Power Output | 500Watts RMS x 1 at 4 Ohms and =1%THD+N |
| Max Power | 2000W |
| Rated Power at 14.4V | 500Watts RMS x [ch] (4 Ohms, 20-200Hz, =1.00% THD); 1000Watts RMS x [ch] (2 Ohms, 100Hz, =1.00% THD) |
| Signal To Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz-200Hz (+0dB, -3dB) |
| Input Impedance | 10k ohm |
| Speaker Impedance | Bridged connection 4O (2O to 8O allowable) |
| Low-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12/-24dB/oct) |
| Infrasonic Filter | Built in Variable Infrasonic Filter (15Hz-40Hz, -24dB/oct) |
| Bass Boost | Built in Bass Boost Control (40Hz, 0dB-+18dB) |
| RCA Input Sensitivity | 0.2[V] - 5.0[V] |
| Speaker Level Input Sensitivity | 4.0[V] - 12.0[V] |
| Battery and Ground | XR Series Type Terminal (capable for 4 guage)(Ni) |
| P.Con | XR Series Type Terminal (capable for 8 guage) |
| Speaker Output | XR Series Type Terminal (capable for 8 guage) |
| Line In | RCA (Gold Colored) |
| Line Out | RCA (Gold Colored) |
| Speaker Input | RCA IN A Channel |
| Dimensions (W x H x D) | 320 [mm] x 51 [mm] x 169 [mm]; 12-5/8 inch x 2 inch x 6-5/8 inch |
| Operating Voltage | 14.4V(11-16V allowable) |
| Current Consumption | 60 [A] |
Kenwood Class D Mono Power Amplifier
Model #: XR1001-1
At a Glance
Get to know this product.
High Performance Parts
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
Deep Bass Sound
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.
Enhanced Signal To Noise Ratio
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.
Specialized Circuit Design
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.
Wired Remote Control
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.
Max Power : 2000W
RMS Power :500W x 1 (4O) 1000W x 1 (2O)
(W)12-5/8" x (H)2" x (D)6-5/8"
Low Pass Filter : 50 - 200 Hz (-12/-24 dB / oct.)
Speaker Level Input
Bass Boost : 40 Hz (0 - +18 dB)
Signal Sensing Turn-on
Infrasonic Filter
