Product Dimensions 1.38"h x 8.69"w x 6.63"d

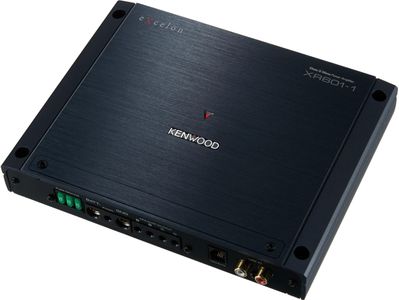

Kenwood's Excelon Reference Series XR601-1 mono amplifier can power your subwoofer with up to 600 watts RMS.Read More
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.
Operating Voltage: 14.4V (11 - 16 V allowable)
Current Consumption: 46 A
General Specs | |
| Color | Black |
| Depth (in.) | 6.63 |
| Width (in.) | 8.69 |
| Height (in.) | 1.38 |
| Amplifier Class | Class D |
| Bluetooth Capable | No |
| Voltage | 14.4 |
| Amp | 46 |
| Amplifier Channels | Mono Block |
| Manufacturer Warranty | 2 Year |
| Impedance | 2 - 4 Ohms |
| RMS Power Handling (Watts) | 600 |
| Water Resistant | No |
| Shallow Mount | No |
| Digital Input | No |
| Speaker Level Input | No |
| Number Of Outputs | 2 |
| Minimum Impedance Unbridged | 2 Ohm |
| Number Of Inputs | 1 |
| Product Weight (lbs.) | 3.5 |
