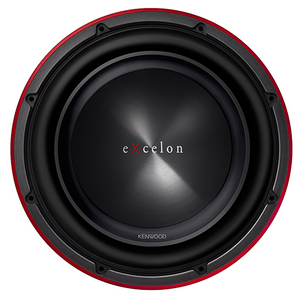

Kenwood KFC-XW1221HP 12" Subwoofer-KFC-XW1221HP

Model #: KFC-XW1221HP
381650
Kenwood
At a Glance

This gives its diaphragm the rigidity required for higher power handling and delivers more accurate bass.

Request a Quote
$180.00Save

Get to know this product.

  • Peak Power 2000W
  • PP Dual Area Cone
  • Closed Yoke with Advanced Airflow Control
  • Stress Controlled Spider
  • Robust Thermal Management System

PP Dual Area Cone

This gives its diaphragm the rigidity required for higher power handling and delivers more accurate bass.

Closed Yoke with Advanced Airflow Control

The KFC-XW1241HP has a robust thermal management system, implemented with an Aluminum Bobbin,Closed Yoke Design, and Advanced Airflow Control.

Stress Controlled Spider

Computer-optimized damper controls stress and increases mechanical durability.

The Best Match

KFC-XR1221HP "High Performance" Class Subwoofer is precisely power matched with the eXcelon X502-1 amplifier.

*Optional CA-121G Subwoofer Grille Ready

Specifications

General

Sealed Enclosure Dimensions (W x H x D)18" x 14.25" x 11.75" (457mm) x (362mm) x (299mm); Inner Volume: 1.25 cft (35.4 liter)
Ported Enclosure Dimensions (W x H x D)20" x 14.25" x 15.5" (508mm) x (362mm) x (394mm); Inner Volume: 1.50 cft (42.5 liter)
Mounting Hol11.13" (282mm)
Impedance (O)2
Peak Input Power (W)2000
RMS Power (W)500
Sensitivity (dB at 1m)81
Frequency Response (Hz)25 ~ 300
Size300mm; 12 inch
DiaphragmPaper
CapInjection PP
SurroundRubber
BasketSteel
GasketABS
MagnetFerrite; f155-f75-t32
Width326mm; 12 - 13/16 inch
Height326mm; 12 - 13/16 inch
Cut-out Diameter279mm; 11 inch
Depth165.8mm; 6 - 1/2 inch
Mounting Depth147mm; 5 - 13/16 inch
Woofer without Gasket6.4 kg; 14.1 lb
Gross Weight7.4 kg; 16.3 lb
Weight of Magnet2340 g; 82.4 oz
AccessoryTapping Screw F4 x 35, 8pcs, Polyethylene Foam 1000 x 13 mm, Instruction Manual, Warranty Card
Special FeatureInjection PP Dual Area Cone, Closed Yoke with Advanced, Airflow Control, Aluminum Bobbin

Misc. Specs

Depth (in.)6.5
Height (in.)12.81
Woofer Size12"
Mount Depth5.81
Peak Power Rating (Watts)2000
Subwoofer Size12"
Rms Power Handling500
Shallow MountNo
