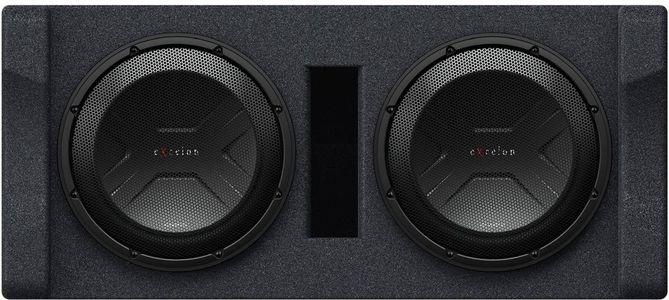

Kenwood P-XW1221D Dual 12" Preloaded Subwoofer Enclosure

Model #: P-XW1221D

At a Glance

X-Motif Cap controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.

WarningProposition 65 Warning for California Residents
Kenwood P-XW1221D Dual 12" Preloaded Subwoofer Enclosure

Electrical

Impedance (ohms)2
Maximum Input Power (W)1200
Sensitivity (dB at 1m)88
Frequency Response (Hz)31-300

Enclosure

TypePorted
MaterialMedium Density Fiberboard
TerminalPush Terminal
Down FiringCapable

Mounted Speaker

# of Woofer2
Base UnitKFC-XW1241
ConeInjection Polypropylene
SurroundUrethane
BasketSteel
GasketABS
MagnetFerrite

General Specs

ColorGray
Depth (in.)15.81
Width (in.)35.75
Height (in.)15.81
Product Weight (lbs.)63.5
RMS Power Handling (Watts)600
Peak Power Rating (Watts)2000
Subwoofer Size12"
Product Weight (kg)28.8
Width (cm)90.8
Height (cm.)40.2
Depth (cm.)40.2

Kenwood P-XW1221D Dual 12" Preloaded Subwoofer Enclosure

Model #: P-XW1221D
555539
Model #: P-XW1221D
Kenwood
$99,999.00

Request a Quote

At a Glance

X-Motif Cap controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.

Get to know this product.

Peak Power 2000W

RMS Power 600W

PP Cone with Diamond Array Pattern

Stress Controlled Spider

2O Impedance

Steel Mesh Grilles Included

X-Motif Cap

X-Motif Cap controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.

Closed Yoke with Advanced Airflow Control

Subwoofer has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.

Stress Controlled Spider

Computer-optimized damper controls stress and increases mechanical durability.

Multiple Position Options

Forward, Rear, or Down-Firing installation available.

Slant Back Design

Easily fits behind the rear seat of an SUV and is more effective in suppressing standing waves that typically occur in a standard square enclosure.

3/4" Thick MDF Baffle

5/8” MDF construction with 3/4” Thick Baffle provides more strength and durability, ensuring accurate bass even at high volume.

Included Steel Mesh Grilles

Valued at $30 each when sold separately, enclosure includes protective grilles for further enhanced durability.

Enhanced Down-Firing Structural Support

Extra thick legs support the weight of the system when installed in a down-firing application. This ensures the low frequency energy is transmitted without loss, resulting in powerful, impactful bass.

Reduced Port Noise

The port’s rounded shape reduces airflow resistance and noise generation.

Precisely Power Matched

P-XW1221D Subwoofer enclosure is precisely power matched with the eXcelon XR601-1 amplifier.

Specifications

General Specs

ColorGray
Depth (in.)15.81
Width (in.)35.75
Height (in.)15.81
Product Weight (lbs.)63.5
RMS Power Handling (Watts)600
Peak Power Rating (Watts)2000
Subwoofer Size12"
Product Weight (kg)28.8
Width (cm)90.8
Height (cm.)40.2
Depth (cm.)40.2

Electrical

Impedance (ohms)2
Maximum Input Power (W)1200
Sensitivity (dB at 1m)88
Frequency Response (Hz)31-300

Mounted Speaker

# of Woofer2
Base UnitKFC-XW1241
ConeInjection Polypropylene
SurroundUrethane
BasketSteel
GasketABS
MagnetFerrite

Enclosure

TypePorted
MaterialMedium Density Fiberboard
TerminalPush Terminal
Down FiringCapable
