Klipsch® CA-800T Loudspeaker-CA-800-T-Black-CA-800-T-Black

Model #: CA-800-T-Black
140730
Klipsch
At a Glance

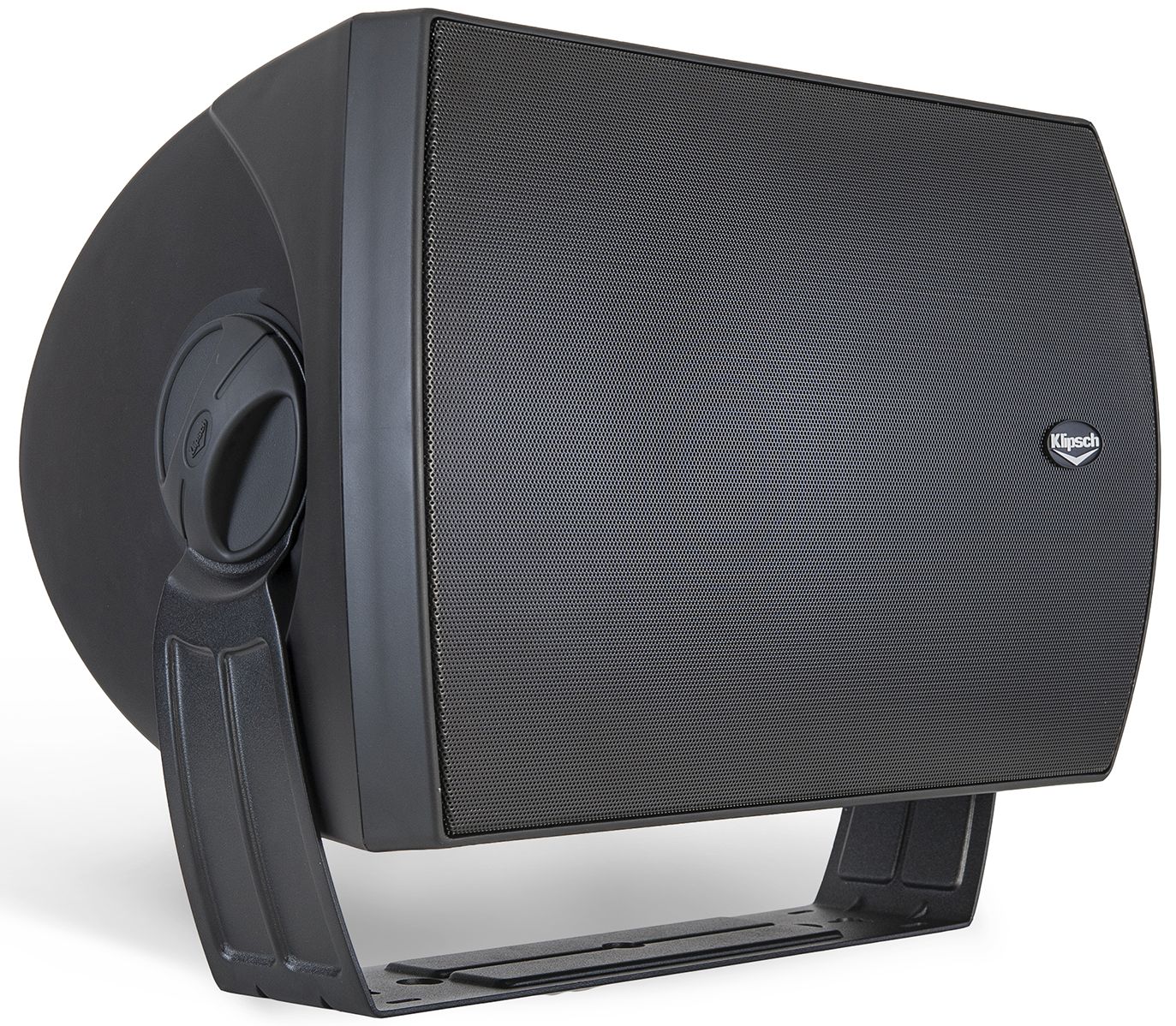

Klipsch® CA-800T Loudspeaker with very high sensitivity and power handling

Call for Best Price
$335.00Save

Get to know this product.

Perfect for foreground or background distributed sound applications in indoor or outdoor residential commercial or recreational environments, the compact full-range 70-volt CA-800T loudspeaker was designed for those who know better than to expect mediocre output.

  • Paintable UV-resistant ABS enclosure with rustproof aluminum grille
  • Very high sensitivity and power handling
  • Built-in 60-watt 70V/100V multi-tap transformer with 8-ohm bypass
  • 90 degree x 90 degree Tractrix Horn tweeter for clean clear highs
  • Supplied with C-style mounting bracket and stainless steel hardware

Building on the success of our popular CA-8T model, the new CA-800T Version features enhanced cosmetics, added mounting flexibility and even better performance.

For efficiency and reliability, the CA-800T has been re-voiced and employs a high-power, extended range low frequency driver. It features a 8-Inch IMG cone woofer and 1-Inch titanium dome tweeter coupled to a square-mouth 90-degree by 90-degree Tractrix® Horn, which allows the speaker to be mounted horizontally or vertically without affecting the coverage pattern.

Available in black or white, this speaker has a durable UV-resistant all-weather enclosure that includes an internal multi-tap transformer with expanded range and a switchable direct 8-ohm bypass. The tap setting for the CA-800T at 70V are 60W, 30W, 15W, 7.5W, and 3.7W. The added 3.7W tap setting offers further placement flexibility. The settings for 100V are 60W, 30W, 15W, and 7.5W.

The included heavy gauge zinc C-bracket provides added mounting strength. It attaches to the enclosure's integral "center-of-gravity balanced" threaded studs that are positioned inside the speaker and to the oversized knobs, ensuring positive position-lock. Connections are provided via four-position barrier strips. This allows an installer to use two connectors for inputs and two for pass-throughs, making it easier to daisy chain.

The CA-800T's updated grille design stays securely fastened and incorporates a new paint formulation for increased weather resistance and years of maintenance-free protection regardless of the climate or environment. The speaker's improved input cup allows for easier drainage and the added 3/8"- 16 threaded insert for use with the optional mounts offers better flexibility.

Useful Documents
Specifications

Construction

Enclosure Type:Vented System Via Front Firing Ports
Tweeter Composition:Titanium
Woofer Composition: IMG (Injection Molding Graphite)

Other

Crossover Type:1.9kHz with 12dB/Octave high-pass 12dB/Octave low-pass
Sold As:Each

Specifications

Sensitivity:96 dB

Styling

Color:Black

Misc. Specs

Product Weight18.0000
Manufacturer Warranty5 Year
Mounting Hardware IncludedYes
Impedance8 ohms
Number of Speakers1
Depth (in.)12.31
Height (in.)11.13
Width (in.)16.38
Woofer Size8"
