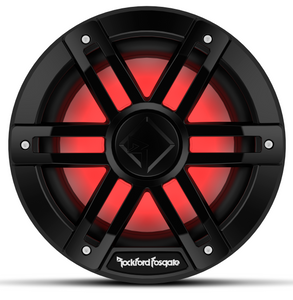

Rockford Fosgate® 12" DVC Black 2-Ohms Color Optix™ Marine Subwoofer

Model #: M1D2-12B

At a Glance

The M1D2-12B Color Optix™ 12” DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IP67 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.

WarningProposition 65 Warning for California Residents
Rockford Fosgate®  12" DVC Black 2-Ohms Color Optix™ Marine Subwoofer

General Specs

Woofer Size12"
Mount Depth6.65
Manufacturer Warranty2 Year
RMS Power Handling (Watts)300
Peak Power Rating (Watts)1200
Subwoofer Size12"
Shallow MountNo

General

Size12"
Nominal Impedance (Ohms)1-Ohm or 4-Ohm Switchable
Power Handling (Watts RMS)300 Watts RMS, 1200 Watts PEAK
Voice Coil Diameter2.0" (50 mm)
Magnet Weight (oz)9 Lbs. (4.1 Kg.)
Frequency Response20 Hz - 750 Hz
Fs (Hz)26
Re (Ohms)3.8
Le (mH)2.02
Sd (cm2)585.4
Qms7.47
Qes0.57
Qts0.53
Vas114.2
SPL (dB @ 1w/1m)92
Xmax (mm)6
Woofer Displacement3.49 (0.12 Liters)
Speaker ConnectorDeutsch™
Cutout Diameter10.85" (275.6 mm)
Mounting Depth6.65" (169.1 mm)
Shipping Weight9 Lbs. (4.1 Kg.)

Rockford Fosgate® 12" DVC Black 2-Ohms Color Optix™ Marine Subwoofer

Model #: M1D2-12B
382543
Model #: M1D2-12B
Rockford Fosgate
$99,999.00

Request a Quote

At a Glance

The M1D2-12B Color Optix™ 12” DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IP67 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.

Get to know this product.

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.

Optically clear UV stable RGB Lighting Encapsulation

Ultra Bright Wide Angle Tri Color (RGB) SMT LED's with Flat Mold Lenses

Vented motor design with water-repelling nano coated mesh screen

2" (50mm) High Temp Kapton™ Woofer Voice Coil Former

Fully insulated silicone tinsel leads

100% UV Stable ASA plastic Frame & Grill

Zinc Nickel-plated Marine grade brass connection terminals

Proprietary Dual Function Input option

Integrated Deutsch™/Amphenol™ RGB and Speaker inputs

Linear Synthetic Fiber Blend Spiders

Santoprene VAST Surround

VAST vertical attach surround technique

Co-molded surround and mineral filled polypropylene cone body

Injection molded mineral filled polypropylene cone body with UV inhibitors

Integrated impedance selector switch

2-Year Warranty

Element Ready™ - Speakers

These speakers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

ASTM B117 Testing

ASTM B117 500Hr Salt/Fog Testing Standards

ASTM G154 Testing

ASTM G154 500Hr Accelerated UV testing

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects.

ISO60068-2-64 Testing

ISO60068-2-64 Vibration testing standards ensure the product is durable and can withstand vibrations found on watercraft and motorsport applications.

VAST Surround - Marine

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Useful Documents
Specifications

General Specs

Woofer Size12"
Mount Depth6.65
Manufacturer Warranty2 Year
RMS Power Handling (Watts)300
Peak Power Rating (Watts)1200
Subwoofer Size12"
Shallow MountNo

General

Size12"
Nominal Impedance (Ohms)1-Ohm or 4-Ohm Switchable
Power Handling (Watts RMS)300 Watts RMS, 1200 Watts PEAK
Voice Coil Diameter2.0" (50 mm)
Magnet Weight (oz)9 Lbs. (4.1 Kg.)
Frequency Response20 Hz - 750 Hz
Fs (Hz)26
Re (Ohms)3.8
Le (mH)2.02
Sd (cm2)585.4
Qms7.47
Qes0.57
Qts0.53
Vas114.2
SPL (dB @ 1w/1m)92
Xmax (mm)6
Woofer Displacement3.49 (0.12 Liters)
Speaker ConnectorDeutsch™
Cutout Diameter10.85" (275.6 mm)
Mounting Depth6.65" (169.1 mm)
Shipping Weight9 Lbs. (4.1 Kg.)
