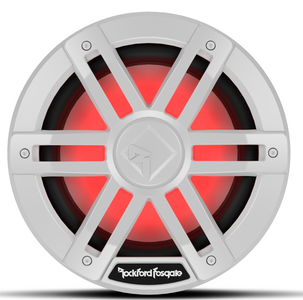

Rockford Fosgate® 6” Color Optix™ Marine 2-Way System

Model #: M1-6

At a Glance

The M1-6 Color Optix™ 2-way 6” speakers deliver loud, clear, accurate sound, and light the way for your journey! The speakers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns.

WarningProposition 65 Warning for California Residents
Rockford Fosgate®  6” Color Optix™ Marine 2-Way System

Misc. Specs

Impedance4 Ohms
Manufacturer Warranty2 Year
Mounting Hardware IncludedYes
Water ResistantYes
RMS Power Handling (Watts)75
Peak Power Rating (Watts)300

General

Size8"
Nominal Impedance (Ohms)2-Ohm or 8-Ohm Switchable
Le (mH)1.7
Re (Ohms)3.2
Frequency Response20 Hz - 750 Hz
SPL (dB @ 1w/1m)87.5
Sd (cm2)227
Woofer Displacement1.40 (0.05 Liters)
Xmax (mm)7
Vas (Liters)15.7
Fs (Hz)44.5
Qts0.9
Power Handling (Watts RMS)150 Watts RMS, 600 Watts PEAK
Magnet Weight (oz)17.72 oz. (0.50 Kg)
Voice Coil Diameter1.5" (38.6 mm)
Speaker ConnectorDeutsch™
Shipping Weight4.6 Lbs. (2.10 Kg)

Rockford Fosgate® 6” Color Optix™ Marine 2-Way System

Model #: M1-6
Request a Quote

At a Glance

The M1-6 Color Optix™ 2-way 6” speakers deliver loud, clear, accurate sound, and light the way for your journey! The speakers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns.

Get to know this product.

The M1-6 Color Optix™ 2-way 6” speakers deliver loud, clear, accurate sound, and light the way for your journey! The speakers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IP67 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.

Optically clear UV stable RGB Lighting Encapsulation

Multiplexed RGB Input

Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses

Grill Integrated 1" (25mm) LCP Balanced Dome Tweeter

1" (25mm) High Temp Kapton™ Woofer Voice Coil Former

Sealed motor design

100% UV Stable ASA plastic Frame & Grill

Zinc Nickel-plated Marine grade brass connection terminals

Proprietary Dual Function Input Terminals

Integrated Deutsch RGB and Speaker receptacles

Linear Synthetic Fiber Blend Spiders

Santoprene VAST Surround

Co-molded surround and mineral filled polypropylene cone body

6dB/Octave crossover network

Fully sealed integrated concealed crossover (ICC) net

2-Year Warranty

These speakers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

ASTM B117 Testing

ASTM B117 500Hr Salt/Fog Testing Standards

ASTM G154 Testing

ASTM G154 500Hr Accelerated UV testing

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects.

ISO60068-2-64 Testing

ISO60068-2-64 Vibration testing standards ensure the product is durable and can withstand vibrations found on watercraft and motorsport applications.

VAST Surround - Marine

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

ICC Crossover

The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.

Useful Documents
Specifications

General

Size8"
Nominal Impedance (Ohms)2-Ohm or 8-Ohm Switchable
Le (mH)1.7
Re (Ohms)3.2
Frequency Response20 Hz - 750 Hz
SPL (dB @ 1w/1m)87.5
Sd (cm2)227
Woofer Displacement1.40 (0.05 Liters)
Xmax (mm)7
Vas (Liters)15.7
Fs (Hz)44.5
Qts0.9
Power Handling (Watts RMS)150 Watts RMS, 600 Watts PEAK
Magnet Weight (oz)17.72 oz. (0.50 Kg)
Voice Coil Diameter1.5" (38.6 mm)
Speaker ConnectorDeutsch™
Shipping Weight4.6 Lbs. (2.10 Kg)

Misc. Specs

Impedance4 Ohms
Manufacturer Warranty2 Year
Mounting Hardware IncludedYes
Water ResistantYes
RMS Power Handling (Watts)75
Peak Power Rating (Watts)300
