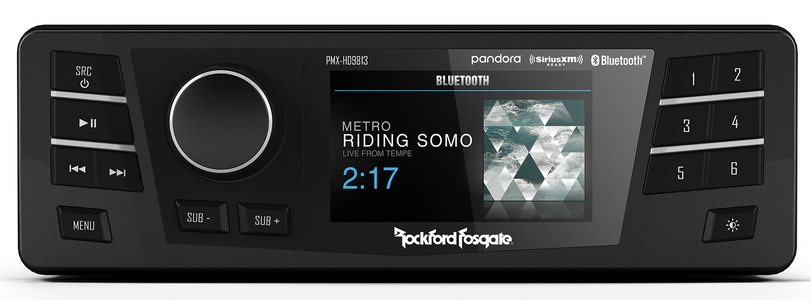

Rockford Fosgate® Digital Media Receiver for 1998-2013 Harley-Davidson

Model #: PMX-HD9813

At a Glance

Direct replacement digital media receiver for select 1998 - 2013 Harley-Davidson® motorcycles. Features 3-inch full color, ultra-bright display with day/night modes and oversized buttons for easy control. Engineered for the ultimate in performance and sound quality featuring 4-Volt pre-amp outputs that don't clip! Plug and play installation with OEM electrical system requires no additional wiring or cutting of existing factory harnesses or components. Retains factory thumb controls.

WarningProposition 65 Warning for California Residents
Rockford Fosgate® Digital Media Receiver for 1998-2013 Harley-Davidson

General Specs

DVD PlayerNo
CD PlayerNo
Number of USB Ports1
Car Stereo Din SizeSingle
Bluetooth CapableYes
Android CapableNo
TouchscreenNo
Manufacturer Warranty1 Year
Water ResistantNo
Aux InputYes
Compatible DevicesiOS
GPSNo
Faceplate StyleIn-Dash
Satellite Radio ReadyYes
Carplay CapableNo
ColorBlack
Impedance2 Ohms
Voice ActivatedYes

General

Output PowerCEA-2006 Power Rating, 25W x 4 @ 4? RMS, 50W x 4 @ 2? MAX, =1.0% THD+N
Operating Voltage9.5 - 16 VDC
Idle Current< 2 Amps
Output Impedance< 500 Ohms
Frequency ResponseRCA: 20Hz - 20 kHz, High-Level: 20Hz - 20 kHz
THD+N4-Ohms: < 1.0 %
RCA Output VoltageFront: 4 V Max, Rear: 4 V Max, Sub: 4 V Max
Channel SeparationRCA: > 50 dB, High-Level: > 50 dB
Signal-to-Noise RatioRCA 2V: > 85 dB, High Level (CEA-2006): > 75 dB, Max Wrms: > 80 dB
AM TunerRange: 530 - 1710 kHz, Sensitivity: 40 dB, Frequency Response: 45 to 2.4 kHz
FM TunerRange: 87.9 - 107.9 MHz, Sensitivity: 8 dB, Frequency Response: 20 - 15 kHz
Bluetooth®3.0+EDR A2DP 1.3
Supported Media FormatsMP3, WMA, AAC, DRM
USB Version2
USB Output Current1.5A
USB Capacity32 Gb max, 255 Folders max, 999 Songs max, Format Win USB as FAT32, Format Mac USB as MS-DOS (FAT)
ClockYes
Display SizeNominal Size: 3" Color TFT, Resolution: 960 x 240, Brightness: 380 nits, Contrast: 400, Pixels: 320 x 240, View Angle: 120
Made for iPhone ModelsiPhone XS Max, iPhone XR, iPhone 8 Plus, iPhone 7 Plus, iPhone SE, iPhone 6s, iPhone 6, iPhone 5c, iPhone XS, iPhone X, iPhone 8, iPhone 7, iPhone 6s Plus, iPhone 6 Plus, iPhone 5s, iPhone 5
Made for iPod ModelsiPod touch (5th generation), iPod touch (6th generation)
Shipping Weight4.75 Lbs. (2.15 Kg)
Dimensions (H x W x D)Faceplate: 2.7" x 8.4" x 0.7" (68.4 mm x 213 mm x 17.1 mm); Chassis: 2.5" x 8.2" x 7.5" (63.5 mm x 209.3 mm x 191 mm)

Rockford Fosgate® Digital Media Receiver for 1998-2013 Harley-Davidson

Model #: PMX-HD9813
385171
Rockford Fosgate

See Price in Cart

At a Glance

Direct replacement digital media receiver for select 1998 - 2013 Harley-Davidson® motorcycles. Features 3-inch full color, ultra-bright display with day/night modes and oversized buttons for easy control. Engineered for the ultimate in performance and sound quality featuring 4-Volt pre-amp outputs that don't clip! Plug and play installation with OEM electrical system requires no additional wiring or cutting of existing factory harnesses or components. Retains factory thumb controls.

Get to know this product.

Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness (sold separately.) PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems. Estimated Installation Time: 1 HOUR.

1998-2013 Harley-Davidson® direct replacement Media Receiver

A2DP and AVRCP Bluetooth® Wireless Streaming

Pandora® Internet Radio Control

SiriusXM® Ready (requires SiriusXM® SXV300 tuner)

Digital AM / FM Tuner

USB Input with 1.5A USB Charging

AUX Input

3" Full Color TFT Display with Day/Night Mode

Retains Factory Handle Bar Audio Controls

Voltage gauge with Low voltage Warning

7-Band Graphic EQ + PEQ

Plug and Play Installation with OEM electrical connectors

Independent Subwoofer Level Control

Compatible with PMX-BTUR Remote control

Multi Region Radio Frequencies

Selectable HP/LP/AP Crossover with Selectable 12/24 dB/Octave Slope

FCC, CE RED, IC, and RCM Certified

Software updatable via USB

2-Year Warranty

*Antenna not included

Element Ready - Motorcycle Solutions

These models are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

Made for iPod/iPhone

This device supports the Apple "Made for iPod/iPhone" protocol.

Pandora®

Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.

Bluetooth® Audio Streaming

Wirelessly stream audio to your unit with any compatible Bluetooth® device.

USB Playback

This source unit supports playback from a USB device.

SiriusXM Ready™

This radio is ready to accept SiriusXM programming.

ASTM D4329 UV Certified

Marine Grade standards ensure resistance to extreme environments.

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects.

IPX4 Water Intrusion Rating

Protects from splashing water, no matter the direction.

CISPR 25 Class 3 EMI Compliant

Vehicles, boats and internal combustion engines – Radio disturbance characteristics – Limits and methods of measurement for the protection of on-board receivers.

Useful Documents
Specifications

General Specs

DVD PlayerNo
CD PlayerNo
Number of USB Ports1
Car Stereo Din SizeSingle
Bluetooth CapableYes
Android CapableNo
TouchscreenNo
Manufacturer Warranty1 Year
Water ResistantNo
Aux InputYes
Compatible DevicesiOS
GPSNo
Faceplate StyleIn-Dash
Satellite Radio ReadyYes
Carplay CapableNo
ColorBlack
Impedance2 Ohms
Voice ActivatedYes

General

Output PowerCEA-2006 Power Rating, 25W x 4 @ 4? RMS, 50W x 4 @ 2? MAX, =1.0% THD+N
Operating Voltage9.5 - 16 VDC
Idle Current< 2 Amps
Output Impedance< 500 Ohms
Frequency ResponseRCA: 20Hz - 20 kHz, High-Level: 20Hz - 20 kHz
THD+N4-Ohms: < 1.0 %
RCA Output VoltageFront: 4 V Max, Rear: 4 V Max, Sub: 4 V Max
Channel SeparationRCA: > 50 dB, High-Level: > 50 dB
Signal-to-Noise RatioRCA 2V: > 85 dB, High Level (CEA-2006): > 75 dB, Max Wrms: > 80 dB
AM TunerRange: 530 - 1710 kHz, Sensitivity: 40 dB, Frequency Response: 45 to 2.4 kHz
FM TunerRange: 87.9 - 107.9 MHz, Sensitivity: 8 dB, Frequency Response: 20 - 15 kHz
Bluetooth®3.0+EDR A2DP 1.3
Supported Media FormatsMP3, WMA, AAC, DRM
USB Version2
USB Output Current1.5A
USB Capacity32 Gb max, 255 Folders max, 999 Songs max, Format Win USB as FAT32, Format Mac USB as MS-DOS (FAT)
ClockYes
Display SizeNominal Size: 3" Color TFT, Resolution: 960 x 240, Brightness: 380 nits, Contrast: 400, Pixels: 320 x 240, View Angle: 120
Made for iPhone ModelsiPhone XS Max, iPhone XR, iPhone 8 Plus, iPhone 7 Plus, iPhone SE, iPhone 6s, iPhone 6, iPhone 5c, iPhone XS, iPhone X, iPhone 8, iPhone 7, iPhone 6s Plus, iPhone 6 Plus, iPhone 5s, iPhone 5
Made for iPod ModelsiPod touch (5th generation), iPod touch (6th generation)
Shipping Weight4.75 Lbs. (2.15 Kg)
Dimensions (H x W x D)Faceplate: 2.7" x 8.4" x 0.7" (68.4 mm x 213 mm x 17.1 mm); Chassis: 2.5" x 8.2" x 7.5" (63.5 mm x 209.3 mm x 191 mm)
