Rockford Fosgate® Power 1,000 Watt Class-AD 5-Channel Amplifier-T1000X5ad

Model #: T1000X5ad
87196
Rockford Fosgate
At a Glance

The Power T1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.

Request a Quote
$669.99Save

Get to know this product.

The T1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel.

Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs.

Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. The Amplifier is also compatible with our PLC2 level remote control allowing remote output level control of the sub channel.

  • Class BD
  • Rockford Fosgate proprietary Class AD technology
  • Differential inputs with high level auto turn-on feature
  • 4/2 Ohm muti-impedance Constant Power
  • Remote-Out feature when using high level inputs
  • 2013 PLC2 remote ready
  • C.L.E.A.N. input/output clip detection and indicator LEDs

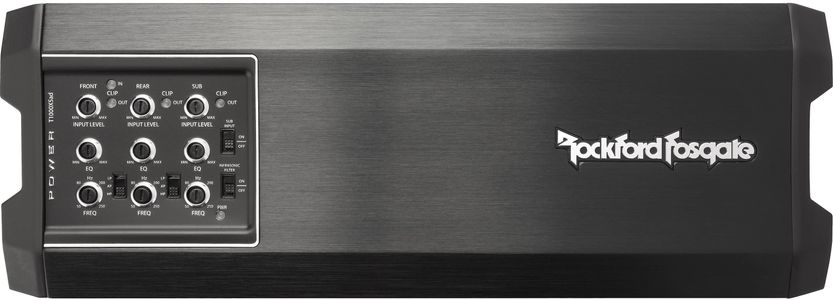

  • Top mounted controls
  • Dual fan cooled
  • Real time thermal sensing with Rollback technology
  • Dual extruded heat sinks
  • All other normal Rockford protection schemes
  • CEA-2006 and CE compliant
  • Discrete surface mount technology
  • 2-Year Warranty
Useful Documents
Specifications

Misc. Specs

ColorBlack
Depth (in.)12
Width (in.)4.3
Height (in.)1.6
Amplifier Output (Watts)1000
Bluetooth CapableNo
Amplifier Channels5
Rms Power Handling600
Manufacturer Warranty2 Year
Impedance1 - 4 Ohms
Water ResistantNo
Speaker Level InputYes
Shallow MountNo
Digital InputNo
Number Of Outputs3
Minimum Impedance Unbridged1 Ohm
CollectionPower
Number Of Inputs3
