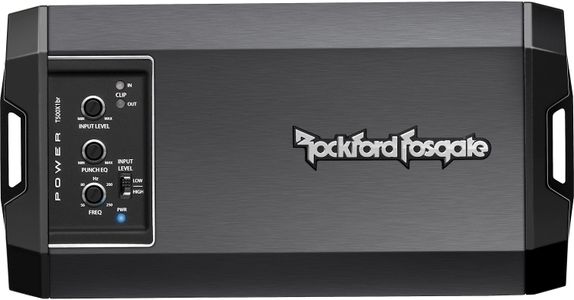

The Power T500X1br is an ultra-compact, patented Boosted Rail 500 Watt mono amplifier. Features high-level auto turn-on, input/output clip detection, top mounted controls and dual fan forced induction cooling. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
Color | Black |
---|---|
Depth (in.) | 8.3 |
Width (in.) | 4.3 |
Height (in.) | 1.6 |
Amplifier Output (Watts) | 500 |
Bluetooth Capable | No |
Amplifier Channels | Mono Block |
Impedance | 1 - 4 Ohms |
Manufacturer Warranty | 2 Year |
RMS Power Handling (Watts) | 500 |
Water Resistant | No |
Shallow Mount | No |
Speaker Level Input | Yes |
Number Of Outputs | 1 |
Minimum Impedance Unbridged | 1 Ohm |
Collection | Power |
Number Of Inputs | 1 |
Request a Quote
The Power T500X1br 500 Watt mono ultra-compact amplifier is built on Rockford Fosgate’s patented Boosted Rail technology that sips current while retaining a storage reserve for extended bursts of power. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
Rockford Fosgate proprietary Boosted Rail technology
Differential inputs with high level auto turn-on feature
Upgraded RCA connectors
8 AWG Power/Ground connector. 10 AWG speaker connector
Remote-Out feature when using high level inputs
2013 PLC2 remote ready
C.L.E.A.N. input/output clip detection and indicator LEDs
Top mounted controls
Dual fan cooled
Real time thermal sensing with Rollback technology
Dual extruded heat sinks
Discrete surface mount technology
2-Year Warranty
Color | Black |
Depth (in.) | 8.3 |
Width (in.) | 4.3 |
Height (in.) | 1.6 |
Amplifier Output (Watts) | 500 |
Bluetooth Capable | No |
Amplifier Channels | Mono Block |
Impedance | 1 - 4 Ohms |
Manufacturer Warranty | 2 Year |
RMS Power Handling (Watts) | 500 |
Water Resistant | No |
Shallow Mount | No |
Speaker Level Input | Yes |
Number Of Outputs | 1 |
Minimum Impedance Unbridged | 1 Ohm |
Collection | Power |
Number Of Inputs | 1 |
