Rockford Fosgate® Power 5.25" 2-Way Component System
At a Glance

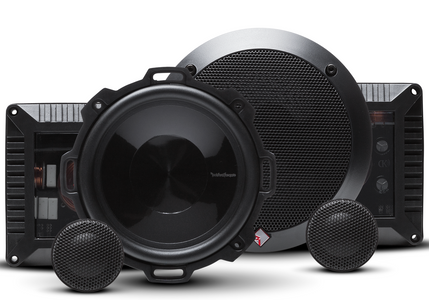

The T152-S is a 5.25” 2-way component system featuring 1” fabric dome tweeters and is rated at 75 Watts RMS. Kit includes pair or woofers with grilles, two tweeters with dedicated audiophile crossovers and mounting hardware.
Proposition 65 Warning for California Residents
Misc. Specs
| Impedance | 4 Ohms |
|---|---|
| Manufacturer Warranty | 1 Year |
| Car Speaker Size | 5.25 |
| Mounting Hardware Included | Yes |
| Water Resistant | No |
| RMS Power Handling (Watts) | 75 |
| Peak Power Rating (Watts) | 150 |
| Shallow Mount | No |
General
| Nominal Impedance (Ohms) | 4-Ohm |
|---|---|
| Speaker Type | Component System |
| Midrange Size (Nominal Diameter) | 5.25" |
| Tweeter Mounting Depth | 0.50" (13 mm) |
| Frequency Response (Hz) | 65Hz - 20kHz |
| Power Handling (RMS) | 75 Watts RMS; 150 Watts Max |
| Sensitivity (dB @ 1W/1M) | 87 |
| Grille/Trim Ring Included | Yes |
| Mounting Hardware | Yes |
| Midrange Mounting Depth | 2.03" (52 mm) |
| Crossover | High-Pass (HP): 3.5kHz @ 18dB/octave Butterworth; Low-Pass (LP): 3.5kHz @ 12dB/octave Butterworth |
| Shipping Weight | 7.38 Lbs. (3.35 kg.) |
| Tweeter Size (Nominal Diameter) | 1.0" (25.4 mm) |
| CEA-2031 Compliant | CEA-2031 Guidelines |
Rockford Fosgate® Power 5.25" 2-Way Component System
Model #: T152-S
At a Glance
Get to know this product.
The ultimate in Sound Quality can be obtained from a Power series component system. Utilizing a separate audiophile grade tweeter, separate midrange and dedicated 2-way crossover, each part of the system will accurately reproduce music with transparent detail. Goin' to a car audio competition? You'll need these!
Butyl midrange rubber surround
FlexFit basket design
OEM adapter plate included
Treated fabric dome neo-tweeter with integral suspension
External audiophile grade component crossover
5% tolerance high quality poly-capacitors and air-core inductors
3 levels of tweeter attenuation
On-axis/off-axis tweeter configuration
Recessed tweeter mount uses standard 1-3/4" hole saw
1 Year Warranty
PTC Protection
Allows tweeter protection with a bypass resistor for 100% run-time.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible speakers.
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.
DDC™ Tweeter Mounting
Our DDC™ (Discreet Dual Clamp) Tweeter Mounting provides concentric clamping pressure around the perimeter of the mounting hole. This results in maximum ease of installation.
VAST Surround (speakers)
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
FlexFit Basket - Speaker
The slot mounted frame pattern allows for variable adjustments to the mounting position.
Multi-OEM Adapter
The Multi-OEM Adapter plate allows round component or full-range speakers to fit in certain OEM openings. This allows the speaker the capacity to fit more vehicles.
