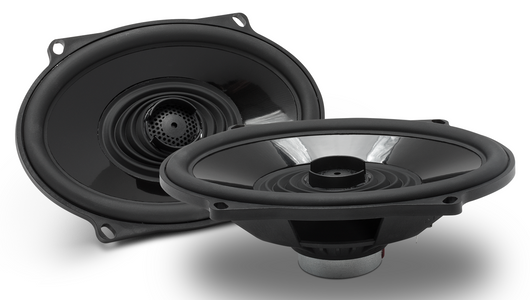

Rockford Fosgate® Power 5"x7" Harley-Davidson® Replacement Bag Lid Speakers

Model #: TMS57

At a Glance

The TMS57 full range coaxial speaker is designed to replace existing 5"x7" speakers in factory equipped Harley-Davidson® BOOM!™ Audio and BOOM!™ Audio Stage-I bag lids. See Compatibility tab for motorcycle fit guide.

WarningProposition 65 Warning for California Residents
Rockford Fosgate® Power 5"x7" Harley-Davidson® Replacement Bag Lid Speakers

General Specs

Impedance4 Ohms
Manufacturer Warranty2 Year
Car Speaker Size5 x 7
Mounting Hardware IncludedYes
Water ResistantYes
RMS Power Handling (Watts)100
Peak Power Rating (Watts)200
Shallow MountNo

General

CEA-2031CEA-2031 Guidelines
Speaker Type2-Way
Midrange Size (Nominal Diameter)5" x 7"
Midrange Mounting Depth2.2" (55 mm)
Frequency Response61 Hz - 20 kHz
Power Handling100 Watts RMS
Impedance
Sensitivity89 dB (1w/1m), 92 dB (2.8V @ 1m)
Grille/Trim Ring IncludedNo
Mounting HardwareYes
Included In The Box(2) TMS57, (2) Aluminum Diamond-R Badges
Shipping Weight2.95 Lbs. (1.34 Kg)

Rockford Fosgate® Power 5"x7" Harley-Davidson® Replacement Bag Lid Speakers

Model #: TMS57
385303
Model #: TMS57
Rockford Fosgate
$99,999.00

Request a Quote

At a Glance

The TMS57 full range coaxial speaker is designed to replace existing 5"x7" speakers in factory equipped Harley-Davidson® BOOM!™ Audio and BOOM!™ Audio Stage-I bag lids. See Compatibility tab for motorcycle fit guide.

Get to know this product.

Do you enjoy hitting the road on your motorcycle but are tired of not enjoying your music because you can't hear it when riding? The Rockford Fosgate TMS series of motorcycle speakers solve that problem. The TMS57 full range coaxial speaker is designed to replace existing 5"x7" speakers in factory equipped Harley-Davidson® BOOM!™ Audio and BOOM!™ Audio Stage-I bag lids. See Compatibility tab for motorcycle fit guide.

It features a Neodymium motor structure driving a reinforced polypropylene cone with Santoprene surround. Highs are produced by an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker features two types of connectors, a standard set of terminals for 2013 and older generation motorcycles, and a new Deutsch style connector for 2014 and newer.

Element Ready design that is weather and water resistant

Carbon‐Fiber Re‐Inforced Polypropylene Cone

Santoprene VAST Surround

Co‐Molded Cone and Surround

Santoprene Front Isolation Spider

High Power 35mm Voice‐Coil

Ultra‐Efficient Neodymium Dual Magnet Motor Structure

Ultra‐High Temperature Glass Re‐Inforced Polymer Frame

Integrated Spade Terminals

Integrated 6dB Crossover with High Power Polyester Capacitor

Ultra‐Efficient 25mm Proprietary Film Dome Tweeter

Neodymium Tweeter with Integrated Phase Plug and ASA Grill

Low Profile Coaxial Tweeter Design

Discreet (Hidden) Tweeter Wire

Factory H-D® connector for plug-n-play operation

2-Year Warranty

Element Ready - Motorcycle Solutions

These models are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

CEA-2031 (speakers)

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

VAST Surround (speakers)

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Useful Documents
Specifications

General Specs

Impedance4 Ohms
Manufacturer Warranty2 Year
Car Speaker Size5 x 7
Mounting Hardware IncludedYes
Water ResistantYes
RMS Power Handling (Watts)100
Peak Power Rating (Watts)200
Shallow MountNo

General

CEA-2031CEA-2031 Guidelines
Speaker Type2-Way
Midrange Size (Nominal Diameter)5" x 7"
Midrange Mounting Depth2.2" (55 mm)
Frequency Response61 Hz - 20 kHz
Power Handling100 Watts RMS
Impedance
Sensitivity89 dB (1w/1m), 92 dB (2.8V @ 1m)
Grille/Trim Ring IncludedNo
Mounting HardwareYes
Included In The Box(2) TMS57, (2) Aluminum Diamond-R Badges
Shipping Weight2.95 Lbs. (1.34 Kg)
