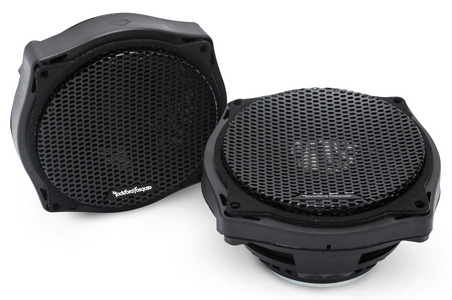

Rockford Fosgate® Power Harley-Davidson® Electra/Street Glide® 6.5" Full Range Fairing Speakers (1998-2013)-TMS6SG

Model #: TMS6SG
385278
Rockford Fosgate
At a Glance

The TMS6SG is a full range coaxial speaker designed to fit the fairing speaker locations of select model Harley-Davison® Electra Glide® and Street Glide® Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies. See compatibility chart for fitment.

Request a Quote
$319.99Save

Get to know this product.

The TMS6SG full range coaxial speaker is designed for direct fitment applications on select model (see compatibility chart) Harley-Davidson® Electra Glide® and Street Glide® motorcycles in the upper fairing locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.

It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.

It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.

  • Harley-Davidson® is a registered trademark of Harley-Davidson Motor Company
  • Element Ready design that is weather and water resistant
  • Ultra-Efficient 25mm Proprietary Film Dome Tweeter
  • Neodymium Tweeter with Integrated Phase Plug and ASA Grill
  • Carbon-Fiber Re-Inforced Polypropylene Cone
  • Santoprene VAST Surround
  • Co-Molded Cone and Surround
  • Santoprene Front Isolation Spider
  • Poly-Cotton Spider
  • High Power 35mm Voice-Coil
  • Ultra-Efficient Neodymium Ring Magnet Motor
  • Ultra-High Temperature Glass Re-Inforced Polymer Frame
  • Integrated Spade Terminals
  • Integrated 6dB Crossover with High Power Polyester Capacitor
  • Low Profile Coaxial Tweeter Design
  • Discreet (Hidden) Tweeter Wire
  • Designed for 1998-2013 Harley-Davidson® Road Glide® Fairing Locations
  • NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
  • 2-Year Warranty

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

Element Ready - Motorcycle Solutions

These models are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

CEA-2031 (speakers)

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

VAST Surround (speakers)

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Useful Documents
Specifications

General

CEA-2031 CompliantCEA-2031 Gudelines
Midrange Size (Nominal Diameter)6.5"
Frequency Response (Hz)56 Hz - 20 kHz
Nominal Impedance (Ohms)4-Ohm
Power Handling (RMS)75 Watts RMS
Power Handling (MAX)150 Watts MAX
CrossoverBuilt-in tweeter crossover
Sensitivity (dB @ 1W/1M)91 dB
Sensitivity (dB @ 2.83V/1M)94 dB
Voice Coil Diameter (in/mm)1.40" (35.6 mm)
Speaker Type2-Way Coax
Grille/Trim Ring IncludedYes
Mounting HardwareYes
Included In The Box(2) Speakers, (2) Speaker Grilles, (1) Hardware Pack

Misc. Specs

Impedance4 Ohms
Manufacturer Warranty2 Year
Car Speaker Size6.5
Mounting Hardware IncludedYes
Rms Power Handling75
Water ResistantYes
Peak Power Rating (Watts)150
Shallow MountNo
