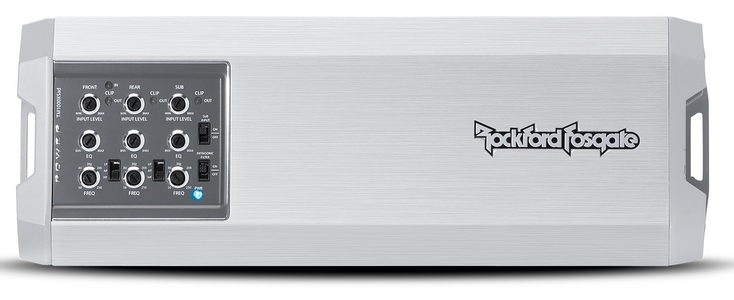

Rockford Fosgate® Power Marine 1,000 Watt Class-ad 5-Channel Amplifier-TM1000X5AD

Model #: TM1000X5AD

At a Glance

The TM1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel. Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit.

Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs. Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. Other features include a conformal coated circuit board for protection against element exposure and compatibility with our PLC2 level remote control for the sub channel.

• Rockford Fosgate proprietary Class AD technology
• Class bd Technology
• Differential inputs with high level auto turn-on feature
• AP remote out feature when using high level inputs
• 4/2 Ohm Multi-Impedance Constant Power
• 2013 PLC2 remote ready
• C.L.E.A.N. input/output clip detection and indicator LEDs
• Top mounted controls
• Dual fan cooled
• Real time thermal sensing
• Dual extruded heat sinks
• All other Rockford protection schemes
• CEA-2006 and CE Compliant
• Discrete surface mount technology
• Marine grade two part epoxy coating on circuit boards
• 2-Year Warranty

Element Ready™ - Amps

These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.

Class AD

This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

Constant Power

Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

3-Stage Airflow

3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
