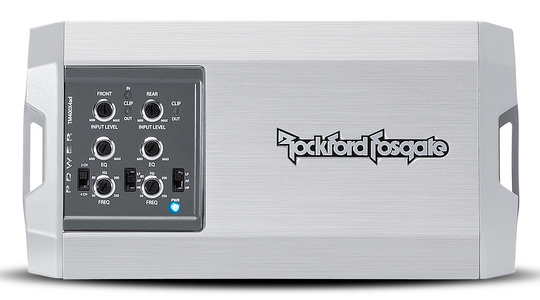

The TM400X4ad is a 400 Watt 4-channel amplifier with high efficiency Class-ad technology and a conformal coated pc board designed for motorsport and marine applications.
Color | Silver |
---|---|
Depth (in.) | 8.3 |
Width (in.) | 4.3 |
Height (in.) | 1.6 |
Amplifier Output (Watts) | 400 |
Bluetooth Capable | No |
Amplifier Channels | 4 |
Impedance | 2 - 4 Ohms |
Manufacturer Warranty | 2 Year |
RMS Power Handling (Watts) | 200 |
Water Resistant | No |
Digital Input | No |
Shallow Mount | No |
Speaker Level Input | Yes |
Number Of Outputs | 2 |
Collection | Power |
Number Of Inputs | 2 |
The Power TM400X4ad 400 Watt 4-channel ultra-compact, amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
Rockford Fosgate proprietary Class AD technology
4/2 Ohm muti-impedance Constant Power
Differential inputs with high level auto turn-on feature
8 AWG power/ground connector w/ upgraded RCA connectors
Remote-Out feature when using high level inputs
2/4 channel input switch
4 Ohm bridged capable
C.L.E.A.N. input/output clip detection and indicator LEDs
Top mounted controls
Dual fan cooled
Real time thermal sensing
Dual extruded heat sinks
Discrete surface mount technology
Marine grade two part epoxy coating on circuit boards
2-Year Warranty
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.
This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.
Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
Color | Silver |
Depth (in.) | 8.3 |
Width (in.) | 4.3 |
Height (in.) | 1.6 |
Amplifier Output (Watts) | 400 |
Bluetooth Capable | No |
Amplifier Channels | 4 |
Impedance | 2 - 4 Ohms |
Manufacturer Warranty | 2 Year |
RMS Power Handling (Watts) | 200 |
Water Resistant | No |
Digital Input | No |
Shallow Mount | No |
Speaker Level Input | Yes |
Number Of Outputs | 2 |
Collection | Power |
Number Of Inputs | 2 |
