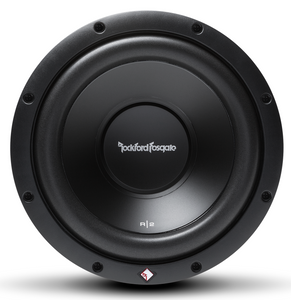

Rockford Fosgate® Prime 10" R2 4-Ohm DVC Subwoofer

Model #: R2SD4-10

At a Glance

When you have no space for bass, our R2 10" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth.

WarningProposition 65 Warning for California Residents
Rockford Fosgate® Prime 10" R2 4-Ohm DVC Subwoofer

Misc. Specs

Woofer Size10"
Mount Depth3.417
Manufacturer Warranty1 Year
RMS Power Handling (Watts)250
Peak Power Rating (Watts)500
Subwoofer Size10"
Shallow MountYes

General

Size10"
Magnet Weight (oz)43 oz. (1.22 kg.)
Shipping Weight8.8 Lbs. (3.99 kg)
SPL (dB @ 1w/1m)Dual 12 AWG compression
Xmax (mm)6.5
Cutout Diameter9.125 in. (232 mm)
Woofer Displacement0.039 cu. ft. (1.1 Liters)
Le (mH)3.9
Nominal ImpedanceDual 4-Ohm
Voice Coil Diameter2" (51 mm)
Speaker ConnectorDual 12 AWG compression
Mounting Depth4.319 in. (109 mm)
Power Handling (Watts RMS)250 Watts RMS; 500 Watts Max
Re (Ohms)7.83
Sd (cm2)339.8
Subwoofer TypeStandard
Voice Coil TypeDual Voice Coil
Sealed Box Volume (Vb)0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)1.4 cu. ft. (39.6 Liters)

Rockford Fosgate® Prime 10" R2 4-Ohm DVC Subwoofer

Model #: R2SD4-10
Request a Quote

At a Glance

When you have no space for bass, our R2 10" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth.

Get to know this product.

When you have no space for bass, our R2 10" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

12 AWG compression terminals

Anodized aluminum voice coil former

Optimized for both sealed and vented enclosures

Mica injected polypropylene cone

Linear spider with embedded 16 AWG tinsel leads

StampCast basket with integrated spider venting

Integrated PVC trim ring

Shallow Motor Assembly

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

Specifications

General

Size10"
Magnet Weight (oz)43 oz. (1.22 kg.)
Shipping Weight8.8 Lbs. (3.99 kg)
SPL (dB @ 1w/1m)Dual 12 AWG compression
Xmax (mm)6.5
Cutout Diameter9.125 in. (232 mm)
Woofer Displacement0.039 cu. ft. (1.1 Liters)
Le (mH)3.9
Nominal ImpedanceDual 4-Ohm
Voice Coil Diameter2" (51 mm)
Speaker ConnectorDual 12 AWG compression
Mounting Depth4.319 in. (109 mm)
Power Handling (Watts RMS)250 Watts RMS; 500 Watts Max
Re (Ohms)7.83
Sd (cm2)339.8
Subwoofer TypeStandard
Voice Coil TypeDual Voice Coil
Sealed Box Volume (Vb)0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)1.4 cu. ft. (39.6 Liters)

Misc. Specs

Woofer Size10"
Mount Depth3.417
Manufacturer Warranty1 Year
RMS Power Handling (Watts)250
Peak Power Rating (Watts)500
Subwoofer Size10"
Shallow MountYes
