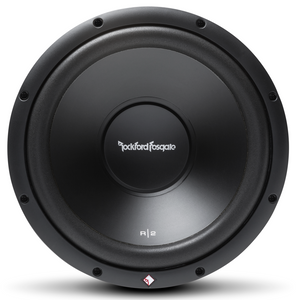

When you have no space for bass, our R2 12" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth.
Woofer Size | 12" |
---|---|
Mount Depth | 3.602 |
Manufacturer Warranty | 1 Year |
RMS Power Handling (Watts) | 250 |
Peak Power Rating (Watts) | 500 |
Subwoofer Size | 12" |
Shallow Mount | Yes |
Size | 12" |
---|---|
Nominal Impedance | Dual 2-Ohm |
Power Handling (Watts RMS) | 250 Watts RMS; 500 Watts Max |
Magnet Weight (oz) | 47.7 oz. (1.35 kg) |
Shipping Weight | 8.8 Lbs. (3.99 kg) |
Voice Coil Diameter | 2" (51 mm) |
Speaker Connector | Dual 12 AWG compression |
Mounting Depth | 5.067 in. (128 mm) |
Fs (Hz) | 34.6 |
Cutout Diameter | 11.25 in. (285 mm) |
Woofer Displacement | 0.046 cu. ft. (1.3 Liters) |
Le (mH) | 3.9 |
Shipping Weight | 9.9 Lbs. (4.49 kg) |
Vas (Liters) | 66.4 |
Sd (cm2) | 539.1 |
Subwoofer Type | Standard |
Voice Coil Type | Dual Voice Coil |
Sealed Box Volume (Vb) | 1.02 cu. ft. (28.8 Liters) |
Vented Box Volume (Vb) | 1.79 cu. ft. (50.6 Liters) |
When you have no space for bass, our R2 12" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.
12 AWG compression terminals
Anodized aluminum voice coil former
Optimized for both sealed and vented enclosures
Mica injected polypropylene cone
Linear spider with embedded 16 AWG tinsel leads
StampCast basket with integrated spider venting
Integrated PVC trim ring
Shallow Motor Assembly
Improved reliability and performance by reducing fatigue and possible shorting.
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
Size | 12" |
Nominal Impedance | Dual 2-Ohm |
Power Handling (Watts RMS) | 250 Watts RMS; 500 Watts Max |
Magnet Weight (oz) | 47.7 oz. (1.35 kg) |
Shipping Weight | 8.8 Lbs. (3.99 kg) |
Voice Coil Diameter | 2" (51 mm) |
Speaker Connector | Dual 12 AWG compression |
Mounting Depth | 5.067 in. (128 mm) |
Fs (Hz) | 34.6 |
Cutout Diameter | 11.25 in. (285 mm) |
Woofer Displacement | 0.046 cu. ft. (1.3 Liters) |
Le (mH) | 3.9 |
Shipping Weight | 9.9 Lbs. (4.49 kg) |
Vas (Liters) | 66.4 |
Sd (cm2) | 539.1 |
Subwoofer Type | Standard |
Voice Coil Type | Dual Voice Coil |
Sealed Box Volume (Vb) | 1.02 cu. ft. (28.8 Liters) |
Vented Box Volume (Vb) | 1.79 cu. ft. (50.6 Liters) |
Woofer Size | 12" |
Mount Depth | 3.602 |
Manufacturer Warranty | 1 Year |
RMS Power Handling (Watts) | 250 |
Peak Power Rating (Watts) | 500 |
Subwoofer Size | 12" |
Shallow Mount | Yes |
