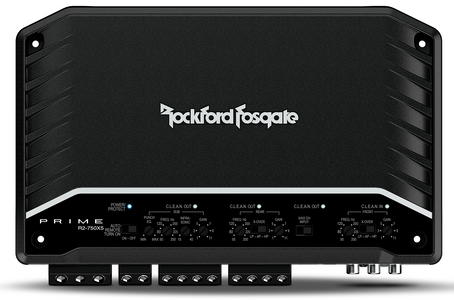

Rockford Fosgate® Prime 750 Watt 5-Channel Amplifier-R2-750X5

Model #: R2-750X5
375195
Rockford Fosgate
At a Glance

Primed for Performance, the R2-750X5 amplifier is a 750 watt, full-range class-D, capable of operating at 4Ohms or 2Ohms stereo, and 4Ohms bridged/mono with a subwoofer channel that can be run at 4O or 2O. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

Request a Quote
$379.99Save

Get to know this product.

The Prime Series were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

  • Balanced Differential Inputs with RCA Pass Through Outputs
  • High Level Input Capable
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • Features C.L.E.A.N. Set-up
  • 2/4/5 Channel Input Selection Switch
  • Includes RLC Remote Level Control
  • Variable Infrasonic Filter
  • Front, Rear and Sub Variable Input Gain adjustment level
  • Continuously Variable On Board Punch EQ
  • Top Mounted Control Panel
  • Short Circuit & Over Current Protection
  • CEA-2006 Compliant & CE Compliant
  • Cast aluminum heat sink
  • Full Range Class D
  • Rollback Protection
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • 1 Year Warranty

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

Full Range Class-D

A full-range version of the Class-D topology which is a high efficiency amplifier design that reduces current consumption from the charging system.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Maximum Efficiency Heat Sink Application (4th Generation)

MEHSA4 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

Rollback Protection

During demanding musical conditions, the amplifier can dynamically reduce demand to prevent stress on the output devices.

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

Useful Documents
Specifications

Misc. Specs

ColorBlack
Depth (in.)11.2
Width (in.)6.8
Height (in.)1.9
Amplifier ClassClass D
Amplifier Output (Watts)750
Bluetooth CapableNo
Amplifier Channels5
Rms Power Handling450
Manufacturer Warranty1 Year
Impedance2 - 4 Ohms
Water ResistantNo
Speaker Level InputYes
Shallow MountNo
Digital InputNo
Number Of Outputs5
Minimum Impedance Unbridged2 Ohm
CollectionPrime
Number Of Inputs6
