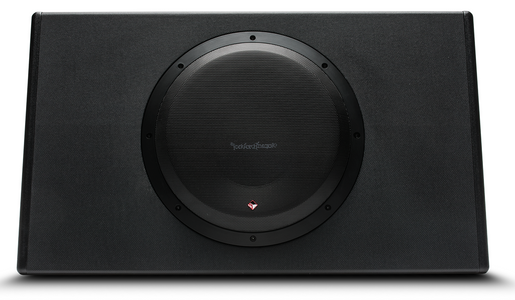

The Punch 300-12T is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-of/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards.
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
|Frequency Response||20 Hz to 200 Hz|
|Integrated Amplifier||300 Watts RMS|
|Crossover Controls||Variable 50 Hz to 200 Hz; 12dB/Octave Butterworth|
|Tone Controls||Bass Boost; 0 dB to +12 dB|
|Phase Control||0° to 180°|
|Remote Control||Punch Level Control (Included); Replacement Part: 1510-57864-01|
|Auto Turn-On Selector||Remote Trigger; DC Offset Sense; Audio Sense|
|Input Switch||High-Level (Speaker Line); Low-Level (RCA)|
|Signal Input||Low/High-Level: 1 RCA Pair (L/R Summed); Replacement Part: 1560-57865-01|
|Input Sensitivity||Low-Level: 150 mV to 6 V; High-Level: 300 mV to 12 V|
|Input Impedance||20k Ohms|
|Power Input Connector||Quick Disconnect; Replacement Part: 1040-57860-01|
|Power Wire Gauge||B+/GND: 8 AWG; REM: 18 AWG|
|Circuit Topology Class||Class-D|
|Heatsink Type||Extruded Aluminum|
|Visual Indicators||Power/Protect LED|
|Fuses||20 Amp (2 x 10 Amp ATO Fuse)|
|Dimensions Box H x W x D; Wedge H x W x D1 x D2||15" x 25.8" x 4.8" x 8.5" 380 mm x 656 mm x 122 mm x 215 mm|
|Manufacturer Warranty||1 Year|
|RMS Power Handling (Watts)||300|
|Peak Power Rating (Watts)||600|
