Good Vibrations
(541) 673-4764

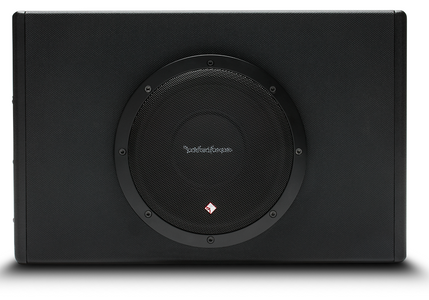

The Punch P300-8P is an "all in one" solution for dropping Bass in any factory or aftermarket system. This model features an 8" high output woofer with a 300-watt internal amplifier in a slim design enclosure that's great for truck and small car applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.
Color | Black |
---|---|
Manufacturer Warranty | 1 Year |
Width (in.) | 17.6 |
Collection | Punch |
Depth (in.) | 5.6 |
Height (in.) | 11.4 |
RMS Power Handling (Watts) | 300 |
Peak Power Rating (Watts) | 600 |
Subwoofer Size | Up to 8" |
Frequency Response | 30 Hz to 200 Hz |
---|---|
Woofer Series | Proprietary |
Enclosure Type | Vented |
Enclosure Material | 5/8" MDF (Medium Density Fiberboard |
Integrated Amplifier | 300 Watts RMS |
Crossover Controls | Variable 50 Hz to 200 Hz; 12dB/Octave Butterworth |
Tone Controls | Bass Boost; 0 dB to +12 dB |
Phase Control | 0° to 180° |
Remote Control | Punch Level Control (Included); Replacement Part: 1510-57864-01 |
Auto Turn-On Selector | Remote Trigger; DC Offset Sense; Audio Sense |
Input Switch | High-Level (Speaker Line); Low-Level (RCA) |
Signal Input | Low/High-Level: 1 RCA Pair (L/R Summed); Replacement Part: 1560-57865-01 |
Input Sensitivity | Low-Level: 150 mV to 6 V; High-Level: 300 mV to 12 V |
Input Impedance | 20k Ohms |
Power Input Connector | Quick Disconnect; Replacement Part: 1040-57860-01 |
Power Wire Gauge | B+/GND: 8 AWG; REM: 18 AWG |
Circuit Topology Class | Class-D |
Heatsink Type | Extruded Aluminum |
Cooling | Convection |
Visual Indicators | Power/Protect LED |
Fuses | 20 Amp (2 x 10 Amp ATO Fuse) |
Request a Quote
The Punch 300-8P is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 8" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-on/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.
High-Efficiency, Low Current Amplifier Design
Optimized 8" Low Impedance Woofer
300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
Adjustable 12db/Octave low pass crossover
On Board Phase Switch
Intelligent auto turn on/off function
Robust Power/Ground connections
Quick Input Connections for Easy Removal
On Board Adjustable Bass EQ
Remote bass level control included
Separate low level and speaker level inputs
Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
Thermal and over/under voltage protection
Slim Design For Truck Applications
1 Year Warranty
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards.
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
Color | Black |
Manufacturer Warranty | 1 Year |
Width (in.) | 17.6 |
Collection | Punch |
Depth (in.) | 5.6 |
Height (in.) | 11.4 |
RMS Power Handling (Watts) | 300 |
Peak Power Rating (Watts) | 600 |
Subwoofer Size | Up to 8" |
Frequency Response | 30 Hz to 200 Hz |
Woofer Series | Proprietary |
Enclosure Type | Vented |
Enclosure Material | 5/8" MDF (Medium Density Fiberboard |
Integrated Amplifier | 300 Watts RMS |
Crossover Controls | Variable 50 Hz to 200 Hz; 12dB/Octave Butterworth |
Tone Controls | Bass Boost; 0 dB to +12 dB |
Phase Control | 0° to 180° |
Remote Control | Punch Level Control (Included); Replacement Part: 1510-57864-01 |
Auto Turn-On Selector | Remote Trigger; DC Offset Sense; Audio Sense |
Input Switch | High-Level (Speaker Line); Low-Level (RCA) |
Signal Input | Low/High-Level: 1 RCA Pair (L/R Summed); Replacement Part: 1560-57865-01 |
Input Sensitivity | Low-Level: 150 mV to 6 V; High-Level: 300 mV to 12 V |
Input Impedance | 20k Ohms |
Power Input Connector | Quick Disconnect; Replacement Part: 1040-57860-01 |
Power Wire Gauge | B+/GND: 8 AWG; REM: 18 AWG |
Circuit Topology Class | Class-D |
Heatsink Type | Extruded Aluminum |
Cooling | Convection |
Visual Indicators | Power/Protect LED |
Fuses | 20 Amp (2 x 10 Amp ATO Fuse) |
