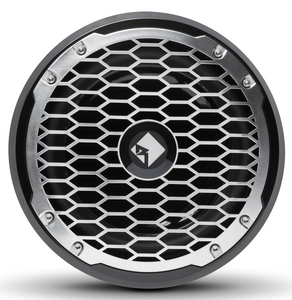

Rockford Fosgate® Punch Marine Black 10" SVC 4-Ohm Subwoofer

Model #: PM210S4B

At a Glance

The PM210SB is a black 10” subwoofer designed for marine watercraft or powersports applications. It features a stainless steel sport grille and is UV and moisture resistant. Can be used in sealed, vented or infinite baffle installations.

WarningProposition 65 Warning for California Residents
Rockford Fosgate® Punch Marine Black 10" SVC 4-Ohm Subwoofer

General Specs

Woofer Size10"
Manufacturer Warranty2 Year
RMS Power Handling (Watts)250
Peak Power Rating (Watts)500
Subwoofer Size10"
Shallow MountNo

General

Size10"
Power Handling (Watts RMS)250 Watts RMS, 500 Watts Max
CEA-2031 CompliantCEA-2031 Guidelines
Xmax (mm)10
Nominal Impedance4-Ohm
Vas (Liters)20.2
Re (Ohms)3.6
Le (mH)0.3
Sd (cm2)346
Cutout Diameter9.0 in. (228 mm)
Qes0.64
Woofer Displacement0.154 cu. ft. (4.35 Liters)
Qms9.00
Qts0.57
Fs (Hz)45
SPL (dB @ 1w/1m)86
Mounting Depth5.5 in. (140 mm)
Magnet Weight (oz)54.4 oz. (1.54 Kg)
Voice Coil Diameter2" aluminum
Speaker ConnectorDual 8 AWG compression
Shipping Weight11.75 Lbs. (5.3 Kg.)

Rockford Fosgate® Punch Marine Black 10" SVC 4-Ohm Subwoofer

Model #: PM210S4B
379575
Model #: PM210S4B
Rockford Fosgate
$99,999.00

Request a Quote

At a Glance

The PM210SB is a black 10” subwoofer designed for marine watercraft or powersports applications. It features a stainless steel sport grille and is UV and moisture resistant. Can be used in sealed, vented or infinite baffle installations.

Get to know this product.

The PM210SB is a black 10” subwoofer designed with weatherproofing technology for marine watercraft or powersports applications. It features a stainless steel sport grille and is UV and moisture resistant. It's versatile design allows it be used in sealed, vented or infinite baffle installations.

True Marine Grade compliance

100% UV stable Centrex® injection molded plastic parts

Injection molded mineral filled polypropylene cone body with UV inhibitors

UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround

18 gauge corrosion resistant removable Stainless Steel grille cover insert

Ultra-flexible fully insulated silicone lead wire

Proprietary corrosion resistant spring loaded push terminals

Moisture, tear and fatigue resistant Aramid fiber spider

Linear, high excursion matched motor magnetics and suspension design

Internal magnetic shielding

Removable trim ring/grille

2-Year Warranty

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

ASTM Test Standards

Marine Grade standards ensure resistance to extreme environments.

VAST Surround - Marine

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

Element Ready™ - Subwoofers

These subwoofers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware.

FlexFit Basket - Marine Sub

The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers for superior heat dissipation (up to 100° at full power levels).

Useful Documents
Specifications

General Specs

Woofer Size10"
Manufacturer Warranty2 Year
RMS Power Handling (Watts)250
Peak Power Rating (Watts)500
Subwoofer Size10"
Shallow MountNo

General

Size10"
Power Handling (Watts RMS)250 Watts RMS, 500 Watts Max
CEA-2031 CompliantCEA-2031 Guidelines
Xmax (mm)10
Nominal Impedance4-Ohm
Vas (Liters)20.2
Re (Ohms)3.6
Le (mH)0.3
Sd (cm2)346
Cutout Diameter9.0 in. (228 mm)
Qes0.64
Woofer Displacement0.154 cu. ft. (4.35 Liters)
Qms9.00
Qts0.57
Fs (Hz)45
SPL (dB @ 1w/1m)86
Mounting Depth5.5 in. (140 mm)
Magnet Weight (oz)54.4 oz. (1.54 Kg)
Voice Coil Diameter2" aluminum
Speaker ConnectorDual 8 AWG compression
Shipping Weight11.75 Lbs. (5.3 Kg.)
