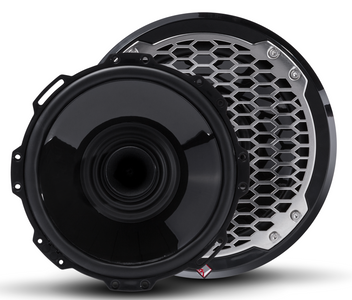

Rockford Fosgate® Punch Marine Black 8" Full Range Speaker

Model #: PM282H-B

At a Glance

The PM282H 8" Element Ready speaker features a 1" High Efficiency Horn Tweeter and polypropylene cone midrange with integrated UV inhibitors attached to a Centrex® injection molded frame. The speaker features fully insulated flex lead wires, corrosion resistant gold plated speaker terminals with integrated expansion connections for our PM2T-S tweeter kit and a fully sealed 12dB/ Octave crossover. The speaker also features an 18 gauge stainless steel and Centrex® grill assembly using stainless steel hardware.

WarningProposition 65 Warning for California Residents
Rockford Fosgate®  Punch Marine Black 8" Full Range Speaker

General Specs

Impedance4 Ohms
Manufacturer Warranty2 Year
Mounting Hardware IncludedYes
Water ResistantNo
RMS Power Handling (Watts)150
Peak Power Rating (Watts)300
Shallow MountNo

General

Tweeter Size (Nominal Diameter)1" (25 mm)
CEA-2031 CompliantCEA-2031 Guidelines
Sensitivity (dB @ 1W/1M)93
Midrange Size (Nominal Diameter)8"
Frequency Response (Hz)63Hz - 22kHz
CrossoverHigh-Pass (HP): 12dB
Grille/Trim Ring IncludedYes
Speaker Type2-Way Coax
Midrange Mounting Depth3.42 in. (86.9 mm)
Mounting HardwareStainless Steel
Nominal Impedance (Ohms)4-Ohm
Power Handling (RMS)150 Watts RMS, 300 Watts Max

Rockford Fosgate® Punch Marine Black 8" Full Range Speaker

Model #: PM282H-B
382657
Model #: PM282H-B
Rockford Fosgate
$99,999.00

Request a Quote

At a Glance

The PM282H 8" Element Ready speaker features a 1" High Efficiency Horn Tweeter and polypropylene cone midrange with integrated UV inhibitors attached to a Centrex® injection molded frame. The speaker features fully insulated flex lead wires, corrosion resistant gold plated speaker terminals with integrated expansion connections for our PM2T-S tweeter kit and a fully sealed 12dB/ Octave crossover. The speaker also features an 18 gauge stainless steel and Centrex® grill assembly using stainless steel hardware.

Get to know this product.

The PM282H 8" Element Ready speaker features a 1" High Efficiency Horn Tweeter that is mounted inline with a mineral filled, polypropylene cone midrange with integrated UV inhibitors.

The cone is attached to the Centrex® Plastic injection molded frame by a Thermo-Plastic Elastomer (TPE) surround and moisture, tear and fatigue resistant Aramid fiber spider assembly. This is driven by our Neodymium matched motor magenetics structure with integrated aluminum heat sinking shorting ring for maximum excursion and output.

Additionally, the speaker features fully insulated flex lead wires, corrosion resistant gold plated speaker terminals with integrated expansion connections for our PM2T-S tweeter kit and a fully sealed 12dB/ Octave crossover. The entire system is topped off with an 18 gauge stainless steel and Centrex® plastic grill assembly using stainless steel hardware.

Integrated 1” (25mm) High Efficiency Horn Tweeter

Injection molded mineral filled polypropylene cone body with UV inhibitors

UV stable Centrex™ 814 injection molded plastic parts

Linear, high excursion matched motor magnetics and suspension design

UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround

Moisture, tear and fatigue resistant Aramid fiber spider

Fully insulated flex lead wire stitched under spider

Integrated 6/12 dB per octave sealed crossover

Corrosion resistant gold plated polarized input terminals

Spare terminal set for optional additional tweeters

Integrated Aluminum Heat Sinking Shorting Ring (IDHS)

18 gauge corrosion resistant removable Stainless Steel grille cover insert

True Marine Grade Compliance

Available in black or white

2-Year Warranty

ASTM Test Standards

Marine Grade standards ensure resistance to extreme environments.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

FlexFit Basket - Marine

The slot mounted frame pattern allows fine-tuning of the marine speaker's mounting position.

VAST Surround - Marine

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

ICC Crossover

The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.

Element Ready™ - Speakers

These speakers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware.

Useful Documents
Specifications

General Specs

Impedance4 Ohms
Manufacturer Warranty2 Year
Mounting Hardware IncludedYes
Water ResistantNo
RMS Power Handling (Watts)150
Peak Power Rating (Watts)300
Shallow MountNo

General

Tweeter Size (Nominal Diameter)1" (25 mm)
CEA-2031 CompliantCEA-2031 Guidelines
Sensitivity (dB @ 1W/1M)93
Midrange Size (Nominal Diameter)8"
Frequency Response (Hz)63Hz - 22kHz
CrossoverHigh-Pass (HP): 12dB
Grille/Trim Ring IncludedYes
Speaker Type2-Way Coax
Midrange Mounting Depth3.42 in. (86.9 mm)
Mounting HardwareStainless Steel
Nominal Impedance (Ohms)4-Ohm
Power Handling (RMS)150 Watts RMS, 300 Watts Max
