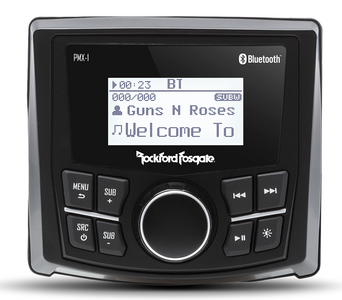

Rockford Fosgate® Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display

Model #: PMX-1

At a Glance

The PMX-1 features a scratch resistant wet bonded display, superior Bluetooth® audio, AUX and USB inputs. The Element Ready™ design also provides protection against water, dust, and UV rays.

WarningProposition 65 Warning for California Residents
Rockford Fosgate® Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display

Misc. Specs

DVD PlayerNo
CD PlayerNo
Number of USB Ports1
Car Stereo Din SizeDouble
Bluetooth CapableYes
Android CapableNo
TouchscreenNo
Manufacturer Warranty2 Year
Water ResistantYes
Aux InputYes
GPSNo
Faceplate StyleIn-Dash
Preamp Voltage2 Volts
Satellite Radio ReadyNo
Carplay CapableNo
Impedance2 Ohms
Voice ActivatedNo

General

Device TypeDigital-Media Receiver
Speaker OutputsYes
Bluetooth®Yes, 3.0+EDR, A2DP 1.3
Pandora® Internet RadioNo
SirirusXM-Ready®No
Multi-Zone/Multi-SourceNo
AUX InputYes (1 RCA pair)
USB ChargingYes
ClockNo
Number Of Presets18 FM / 12 AM / 6 WB
Steering Wheel Control ReadyNo
AM Tuner Range530 - 1710 kHz
AM Tuner Sensitivity40 dB
AM Tuner Frequency Response45 to 2.4 KHz
FM Tuner Range87.9 - 107.9 MHz
FM Tuner Sensitivity8 dB
FM Tuner Frequency Response20 - 15 KHz
Power OutputCEA-2006 Power Rating, 25W x 4 @ 4Ω RMS, 50W x 4 @ 2Ω MAX, ≤1.0% THD+N
Min. Speaker Impedance
Frequency ResponseRCA: 20 Hz - 20 kHz, High-Level: 20 Hz - 20 kHz
Output Impedance<500 Ω
Max Output VoltageRCA Front: 2 V, RCA Rear/Sub: 2 V
Signal To Noise RatioRCA 2V: >85 dB, High-Level CEA-2006: >75 dB, High-Level Max Watts: >85 dB
Max THD+NHigh-Level: <1.0 @ 4-Ohm
Channel SeparationRCA: >70 dB, High-Level: >50 dB
Media FormatsMP3, WMA, AAC, DRM
USB Output Current1 A
Operating Voltage9 - 16 VDC
USB Version2.0
Idle Current<2 A
Fuse Rating20 A
Width4.5" (11.5 cm)
Face Depth1.5" (3.8 cm)
Mount Depth2.9" (7.4 cm)
Height4.2 (10.6 cm)
Shipping Weight1.22 Lbs. (0.55 Kg)
Back Panel Cutout3" (77 mm)

Rockford Fosgate® Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display

Model #: PMX-1
Request a Quote

At a Glance

The PMX-1 features a scratch resistant wet bonded display, superior Bluetooth® audio, AUX and USB inputs. The Element Ready™ design also provides protection against water, dust, and UV rays.

Get to know this product.

The PMX-1 features a 9H tempered glass screen optically bonded which allows for optimized viewing of the dot matrix display under all lighting and viewing conditions. The superior Bluetooth® audio features A2DP and AVRCP for better range, easier device pairing and glitch free wireless audio streaming. The flexible AUX and USB inputs enable convenient access to various audio playback formats and charging of your mobile devices.

Wet bonded 2.3" Full Dot Matrix LCD Display

9H Tempered Glass Screen

A2DP and AVRCP Bluetooth® Wireless Streaming

AUX and USB Inputs with USB Charging

Compatible with PMX-BTUR Steering Wheel Remote

Independent Subwoofer Level Control

7-Band Graphic EQ + PEQ

Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct

Voltage gauge with Low voltage Warning

AM / FM / WB Tuner

Multi Region Radio Frequencies

IPX6 Marine Grade Front Panel

FCC, CE and EN60945 Certified

2-Year Warranty

Element Ready™ - Source Units

These source units are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

Built In Bluetooth®

Built In Bluetooth®

USB Playback

This source unit supports playback from a USB device.

MP3 Playback

This source unit supports MP3 file format playback.

ASTM B117 & D4329 Tested

ASTM B117 & D4329 Tested

IPX6 Water Intrusion Rating

IPX6 Water Intrusion Rating

Useful Documents
Specifications

General

Device TypeDigital-Media Receiver
Speaker OutputsYes
Bluetooth®Yes, 3.0+EDR, A2DP 1.3
Pandora® Internet RadioNo
SirirusXM-Ready®No
Multi-Zone/Multi-SourceNo
AUX InputYes (1 RCA pair)
USB ChargingYes
ClockNo
Number Of Presets18 FM / 12 AM / 6 WB
Steering Wheel Control ReadyNo
AM Tuner Range530 - 1710 kHz
AM Tuner Sensitivity40 dB
AM Tuner Frequency Response45 to 2.4 KHz
FM Tuner Range87.9 - 107.9 MHz
FM Tuner Sensitivity8 dB
FM Tuner Frequency Response20 - 15 KHz
Power OutputCEA-2006 Power Rating, 25W x 4 @ 4Ω RMS, 50W x 4 @ 2Ω MAX, ≤1.0% THD+N
Min. Speaker Impedance
Frequency ResponseRCA: 20 Hz - 20 kHz, High-Level: 20 Hz - 20 kHz
Output Impedance<500 Ω
Max Output VoltageRCA Front: 2 V, RCA Rear/Sub: 2 V
Signal To Noise RatioRCA 2V: >85 dB, High-Level CEA-2006: >75 dB, High-Level Max Watts: >85 dB
Max THD+NHigh-Level: <1.0 @ 4-Ohm
Channel SeparationRCA: >70 dB, High-Level: >50 dB
Media FormatsMP3, WMA, AAC, DRM
USB Output Current1 A
Operating Voltage9 - 16 VDC
USB Version2.0
Idle Current<2 A
Fuse Rating20 A
Width4.5" (11.5 cm)
Face Depth1.5" (3.8 cm)
Mount Depth2.9" (7.4 cm)
Height4.2 (10.6 cm)
Shipping Weight1.22 Lbs. (0.55 Kg)
Back Panel Cutout3" (77 mm)

Misc. Specs

DVD PlayerNo
CD PlayerNo
Number of USB Ports1
Car Stereo Din SizeDouble
Bluetooth CapableYes
Android CapableNo
TouchscreenNo
Manufacturer Warranty2 Year
Water ResistantYes
Aux InputYes
GPSNo
Faceplate StyleIn-Dash
Preamp Voltage2 Volts
Satellite Radio ReadyNo
Carplay CapableNo
Impedance2 Ohms
Voice ActivatedNo
