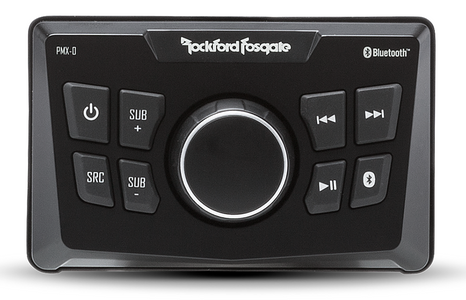

Rockford Fosgate® Punch Marine Ultra Compact Digital Media Receiver

Model #: PMX-0

At a Glance

The PMX-0 ultra compact digital media receiver is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. It features Bluetooth audio streaming for Apple and Android products as well as auxiliary audio input and is the ideal choice for that small system media receiver.

WarningProposition 65 Warning for California Residents
Rockford Fosgate® Punch Marine Ultra Compact Digital Media Receiver

Misc. Specs

DVD PlayerNo
CD PlayerNo
Number of USB Ports1
Car Stereo Din SizeDouble
Bluetooth CapableYes
Android CapableYes
TouchscreenNo
Manufacturer Warranty2 Year
Water ResistantYes
Aux InputYes
Compatible DevicesAndroid/iOS
GPSNo
Faceplate StyleIn-Dash
Preamp Voltage2 Volts
Satellite Radio ReadyNo
Carplay CapableNo
ColorBlack
Voice ActivatedNo

General

Operating Voltage10.5 V - 16 V
Power OutputNo
Fuse Rating3 A
USB CapacityNo
Speaker OutputsNo
Made For iPod ModelsBluetooth® Only
Android CompatibilityBluetooth® Only
Device TypeDigital-Media Receiver
Bluetooth®Yes, 3.0, AVRCP & A2DP
USB Output Current1A (Charging Only)
USB ChargingYes
Made for iPhone ModelsBluetooth® Only
Apple®/Android™ CompatibleYes
Multi-Zone/Multi-SourceNo
RCA Output Voltage2 V
RCA Output Impedance500Ω
Dimensions (HxWxD)H2.6" x W4.1" x D2.5" (6.6cm x 10.41cm x 3.35cm)
FaceplateDepth 1.5" (3.81cm)
ChassisDepth 1.0" (2.54cm)
ClockNo
Speaker Output THD+N<1.0
AUX InputYes
Steering Wheel Control ReadyNo
Frequency Response20 Hz to 20 kHz
Back Panel Cutout2" (52mm)
Shipping Weight1.15 Lbs. (0.52 Kg)

Rockford Fosgate® Punch Marine Ultra Compact Digital Media Receiver

Model #: PMX-0
Request a Quote

At a Glance

The PMX-0 ultra compact digital media receiver is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. It features Bluetooth audio streaming for Apple and Android products as well as auxiliary audio input and is the ideal choice for that small system media receiver.

Get to know this product.

The PMX-0 is a ground up designed ultra compact digital media receiver ideal for small systems and vehicles. This unit Features Bluetooth streaming audio connectivity for both Apple and Android based devices, RCA Auxiliary inputs as well as Front, Rear and Sub RCA output connections. Control is provided through the water resistant rotary encoder knob and white LED backlit buttons and provide instant sub level control at your fingertips.

The front panel is IPX6 rated for water spray intrusion and features a conformal coated PCB circuit board protecting the vital electronics. We further validate the unit with 500 hours of testing under both the ASTM B117 and D4329 testing standards to make sure it will hold up under years of daily use exposed to the elements.

Bluetooth streaming audio (A2DP) protocol version 1.0 installed

Simple Secure Pairing (SSP)

Waterproof Rotary Encoder Volume Control

White LED Button Illumination

Front Panel Sub Control

Voice Command Confirmation

Rear AUX-In (L/R)

Rear USB With 1A Charging Only

Epoxy coated circuit board for water resistance

Upgradeable Firmware and Bluetooth Software via USB

Easy 2" Mounting Hole and Compression U-Clamp Mounting

2-Year Warranty

Element Ready™ - Source Units

These source units are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

Built In Bluetooth®

Built In Bluetooth®

USB Playback

This source unit supports playback from a USB device.

ASTM B117 & D4329 Tested

ASTM B117 & D4329 Tested

IPX6 Water Intrusion Rating

IPX6 Water Intrusion Rating

Useful Documents
Specifications

General

Operating Voltage10.5 V - 16 V
Power OutputNo
Fuse Rating3 A
USB CapacityNo
Speaker OutputsNo
Made For iPod ModelsBluetooth® Only
Android CompatibilityBluetooth® Only
Device TypeDigital-Media Receiver
Bluetooth®Yes, 3.0, AVRCP & A2DP
USB Output Current1A (Charging Only)
USB ChargingYes
Made for iPhone ModelsBluetooth® Only
Apple®/Android™ CompatibleYes
Multi-Zone/Multi-SourceNo
RCA Output Voltage2 V
RCA Output Impedance500Ω
Dimensions (HxWxD)H2.6" x W4.1" x D2.5" (6.6cm x 10.41cm x 3.35cm)
FaceplateDepth 1.5" (3.81cm)
ChassisDepth 1.0" (2.54cm)
ClockNo
Speaker Output THD+N<1.0
AUX InputYes
Steering Wheel Control ReadyNo
Frequency Response20 Hz to 20 kHz
Back Panel Cutout2" (52mm)
Shipping Weight1.15 Lbs. (0.52 Kg)

Misc. Specs

DVD PlayerNo
CD PlayerNo
Number of USB Ports1
Car Stereo Din SizeDouble
Bluetooth CapableYes
Android CapableYes
TouchscreenNo
Manufacturer Warranty2 Year
Water ResistantYes
Aux InputYes
Compatible DevicesAndroid/iOS
GPSNo
Faceplate StyleIn-Dash
Preamp Voltage2 Volts
Satellite Radio ReadyNo
Carplay CapableNo
ColorBlack
Voice ActivatedNo
