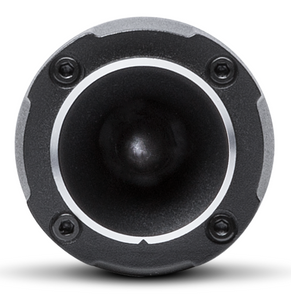

Rockford Fosgate® Punch Pro 1" 4-Ohm Neodymium Tweeter

Model #: PP4-NT

At a Glance

The PP4-NT is a Punch Pro 1" neodymium 4-ohm tweeter designed for SPL systems. Its smaller size allows for use in compact areas while still producing very loud output.

WarningProposition 65 Warning for California Residents
Rockford Fosgate®  Punch Pro 1" 4-Ohm Neodymium Tweeter

General Specs

Impedance4 Ohms
Manufacturer Warranty1 Year
Mounting Hardware IncludedYes
Water ResistantNo
RMS Power Handling (Watts)50
Peak Power Rating (Watts)100
Shallow MountNo

General

Voice Coil Diameter (in/mm)1" (25 mm)
Speaker TypeTweeter
Tweeter Size (Nominal Diameter)1"
Tweeter Mounting Depth2.57" (65.8 mm)
Crossover4kHz @ 6dB/Octave
Sensitivity (dB @ 1W/1M)105
Mounting HardwareYes
Power Handling (RMS)50 Watts RMS, 100 Watts Max
Tweeter Mounting DiameterLarge Trim Ring: 2.52" (64 mm), Small Trim Ring: 1.79" (45.5 mm)
Nominal Impedance (Ohms)4-Ohm
Frequency Response (Hz)4kHz - 20kHz
Sensitivity (dB @ 1W/1M)105
CEA-2031 CompliantCEA-2031 Guidelines

Rockford Fosgate® Punch Pro 1" 4-Ohm Neodymium Tweeter

Model #: PP4-NT
377285
Model #: PP4-NT
Rockford Fosgate
$99,999.00

Request a Quote

At a Glance

The PP4-NT is a Punch Pro 1" neodymium 4-ohm tweeter designed for SPL systems. Its smaller size allows for use in compact areas while still producing very loud output.

Get to know this product.

The PP4-NT Punch Pro is a 1" tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The neodymium motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes mounting hardware.

High efficiency horn tweeter

Aluminum diaphragm

Aluminum phase plug

High temp Nomex former voice coil

Die cast aluminum frame

All Metal Input Spring Terminal Connection

Neodymium motor structure

Built-in 6dB/Octave crossover

Removable mounting flange

Mounting hardware included

PP4-X and PP8-X crossover compatible

Sold as individual units (not in pairs)

1 Year Warranty

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible speakers.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Useful Documents
Specifications

General Specs

Impedance4 Ohms
Manufacturer Warranty1 Year
Mounting Hardware IncludedYes
Water ResistantNo
RMS Power Handling (Watts)50
Peak Power Rating (Watts)100
Shallow MountNo

General

Voice Coil Diameter (in/mm)1" (25 mm)
Speaker TypeTweeter
Tweeter Size (Nominal Diameter)1"
Tweeter Mounting Depth2.57" (65.8 mm)
Crossover4kHz @ 6dB/Octave
Sensitivity (dB @ 1W/1M)105
Mounting HardwareYes
Power Handling (RMS)50 Watts RMS, 100 Watts Max
Tweeter Mounting DiameterLarge Trim Ring: 2.52" (64 mm), Small Trim Ring: 1.79" (45.5 mm)
Nominal Impedance (Ohms)4-Ohm
Frequency Response (Hz)4kHz - 20kHz
Sensitivity (dB @ 1W/1M)105
CEA-2031 CompliantCEA-2031 Guidelines
